BDS 761FPE 3 inch FOX Performance Elite Lift Kit with 3" inch Block Kit | 2020-2025 GM Silverado/Sierra 2500HD/3500HD with Rear Overload

FOX Performance Elite

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

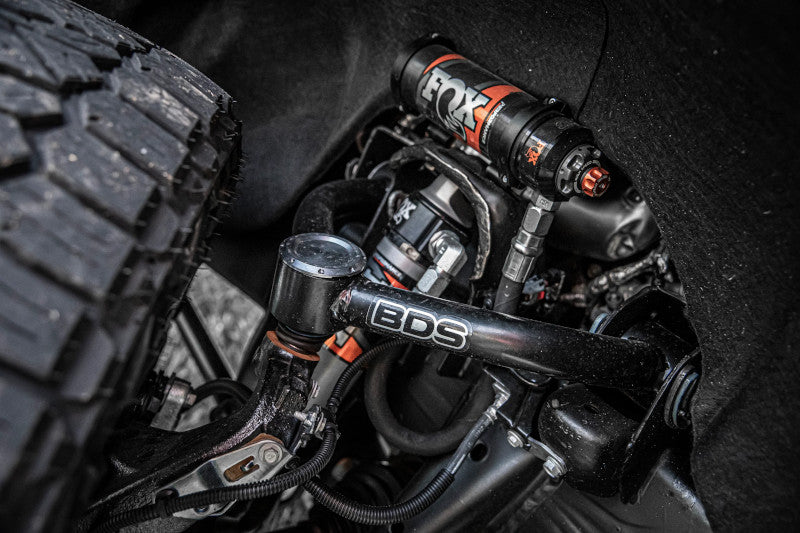

HD Upper Control Arms

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Rear Lift Option

Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.

Vehicle Fitment:

2020, 2021, 2022, 2023, 2024, 2025 GM Sierra/Silverado 2500HD/3500HD With top-mounted overload springs on the rear leaf springs.

Notes:

1. Disassembly/assembly of the factory torsion bar system requires the use of a special unloading tool. The GM specified tool #CH48809
2. Some minor trimming may be necessary to fit certain wheel/tire combination. This is normal with most aftermarket tire/wheel fitment on Chevy/GM trucks and typically consists of trimming the bottom edge of the inner fender shrouds and/or lower corner of front bumper valance. As a rule of thumb, deeper backspacing and shorter/ narrower tires will reduce/eliminate trimming required. Further trimming tips are included at the end of this instruction sheet.
3. Stock wheels and stock tires can be installed, but depending upon alignment and tire profile will be tight to the ball joint cup. ¼” – ½” wheel spacers may be required to use stock wheels and stock tires.

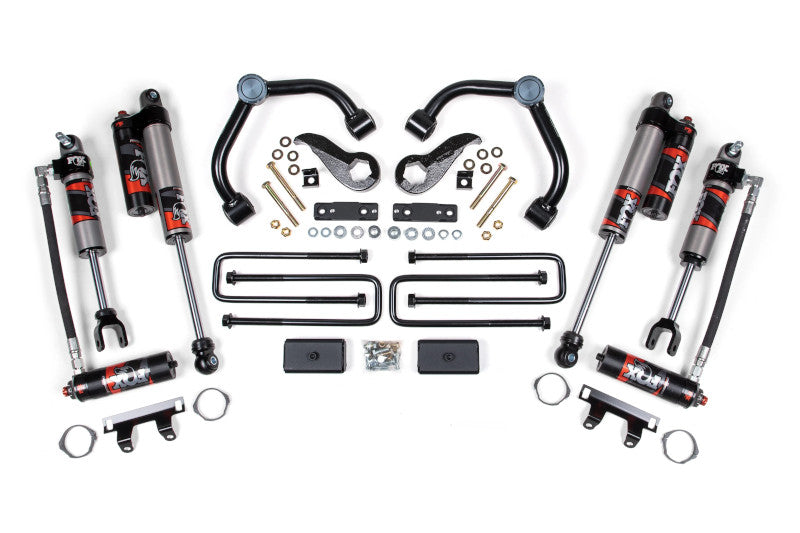

Kit Includes

• 2020-2025 Chevrolet Silverado/GMC Sierra 2500/3500 HD 3" Box Kit (011310)
• 2011-2025 Chevrolet Silverado/GMC Sierra 2500/3500 HD 2" Rear Block w/ Overload (011217)
• Kit: 20-ON GM 2500/3500 w/ UCA, Front, 2.5 Truck PES, R/R, 5.7", 1.5-2.5" Lift, DSC (FOX88326084)
• Kit: 20-ON GM 2500/3500, Rear, 2.5 Truck PES, P/B, 10.17", 0-1" Lift, DSC (FOX88326085)
