- FOX 2.5 performance elite series shocks offer next level performance and damper capacity. Aluminum body for faster heat dispersion and DSC adjustable reservoir.
- Performance UCAs increase strength and allow for more suspension travel
- High strength cast torsion bar keys use an indexed design to provide additional ride height.
- Sway bar relocation for proper clearance
- Differential relocation to improve CV operating angle.
- Rear block and u-bolt kit provides lift while maintaining spring function and load capacity

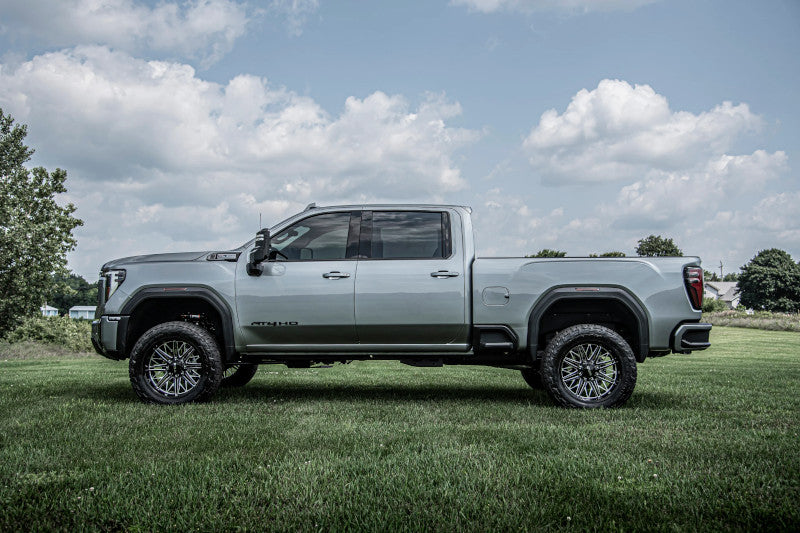

BDS 760FPE 3" inch FOX Performance Elite Lift Kit with 3" inch Block Kit | 2020-2025 GM Silverado/Sierra 2500HD/3500HD
BDS 760FPE 3" inch FOX Performance Elite Lift Kit with 3" inch Block Kit | 2020-2025 GM Silverado/Sierra 2500HD/3500HD
- Price
- $4,029.80
Ships From Manufacturer in 1-3 Days
BDS Suspension
BDS 760FPE 3" inch FOX Performance Elite Lift Kit with 3" inch Block Kit | 2020-2025 GM Silverado/Sierra 2500HD/3500HD
Click to open expanded view
Features:
FOX Performance Elite
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

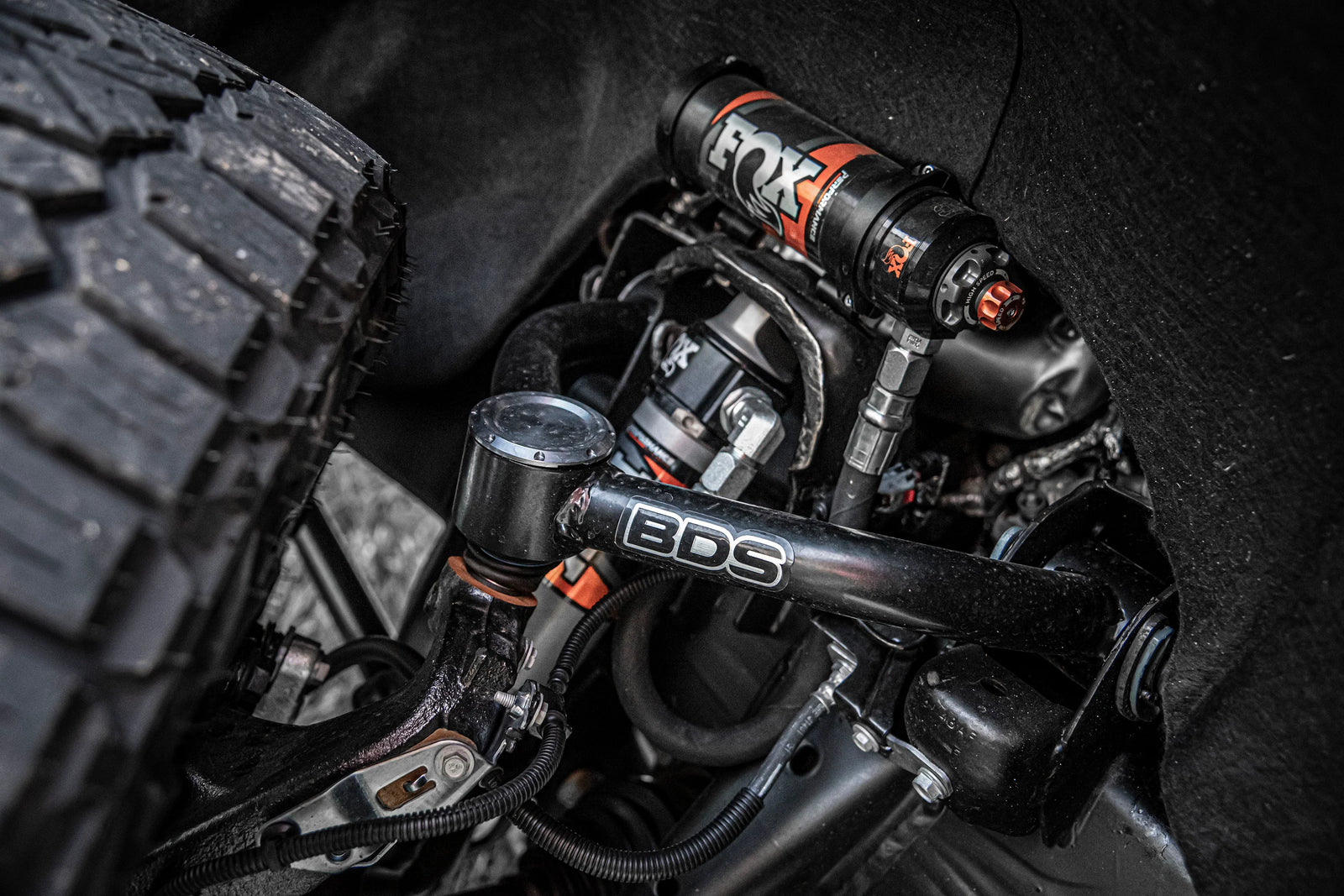

HD Upper Control Arms
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
Rear Lift Option
Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.
Recommended Tires & Wheels
- 35 x 12.5 with 20 x 9 and 5.75 in. Backspace
- 295 / 60 with 20 x 9 and 5.75 in. Backspace
- 285 / 65 with 20 x 9 and 6.18 in. Backspace
Vehicle Fitment
2020, 2021, 2022, 2023, 2024, 2025 GM Sierra/Silverado 2500HD/3500HD With top-mounted overload springs on the rear leaf springs.
Important Notes
- Disassembly/assembly of the factory torsion bar system requires the use of a special unloading tool. The GM specified tool #CH48809
- Some minor trimming may be necessary to fit certain wheel/tire combination. This is normal with most aftermarket tire/wheel fitment on Chevy/GM trucks and typically consists of trimming the bottom edge of the inner fender shrouds and/or lower corner of front bumper valance. As a rule of thumb, deeper backspacing and shorter/ narrower tires will reduce/eliminate trimming required. Further trimming tips are included at the end of this instruction sheet.
- Stock wheels and stock tires can be installed, but depending upon alignment and tire profile will be tight to the ball joint cup. ¼” – ½” wheel spacers may be required to use stock wheels and stock tires.

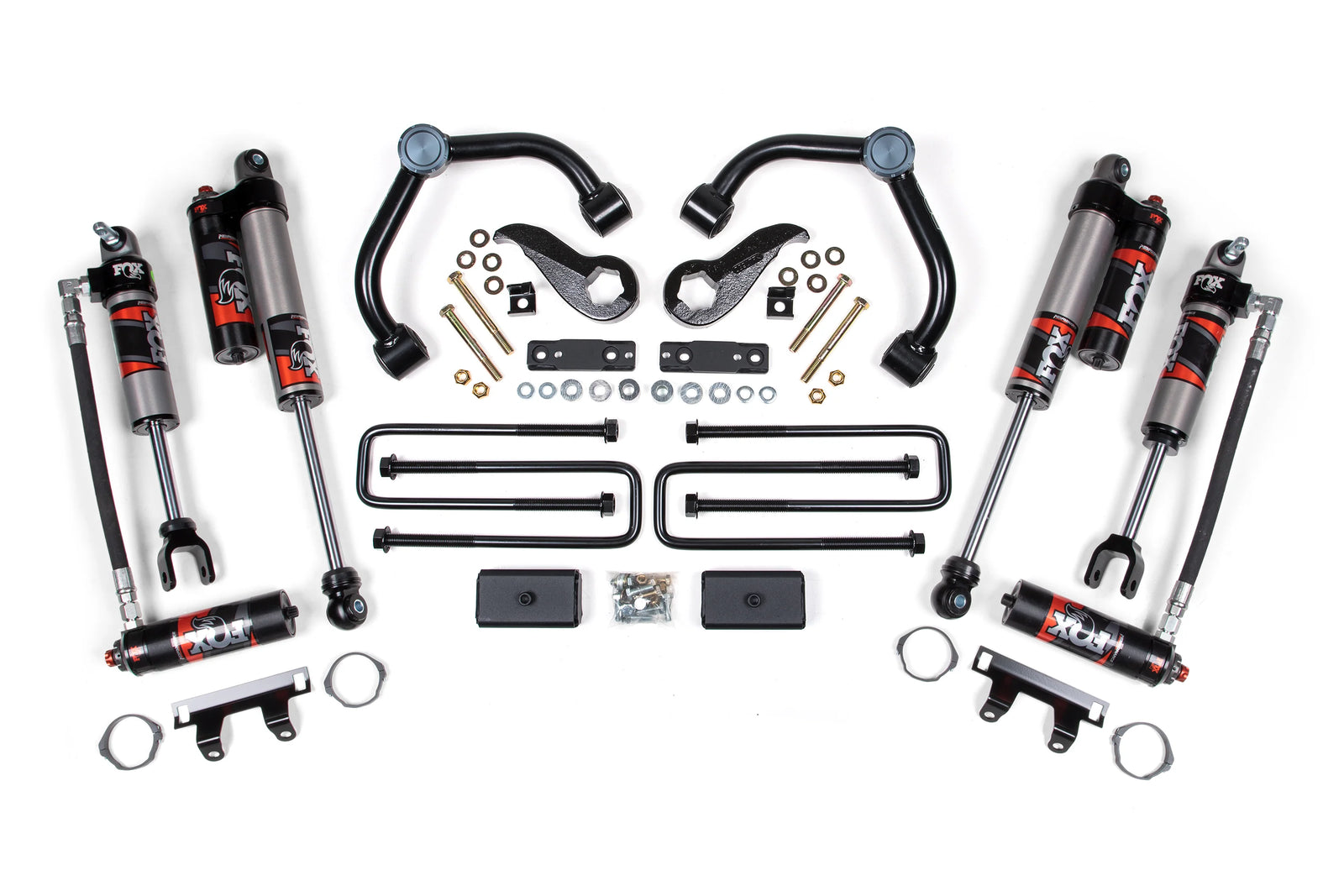

Kit Includes:
- 2020-2025 Chevrolet Silverado/GMC Sierra 2500/3500 HD 3" Box Kit (011310)
- 2011-2025 Chevrolet Silverado/GMC Sierra 2500/3500 HD 2" Rear Block w/o Overload (011218)
- Kit: 20-ON GM 2500/3500 w/ UCA, Front, 2.5 Truck PES, R/R, 5.7", 1.5-2.5" Lift, DSC (FOX88326084)
- Kit: 20-ON GM 2500/3500, Rear, 2.5 Truck PES, P/B, 10.17", 0-1" Lift, DSC (FOX88326085)
| Property | Values |
|---|---|
| Year Ranges | 2020-2025 |
| Make | GM/Chevrolet/GMC |
| Model | Silverado/Sierra |
| Series | 2500HD/3500HD |
| Engine |
