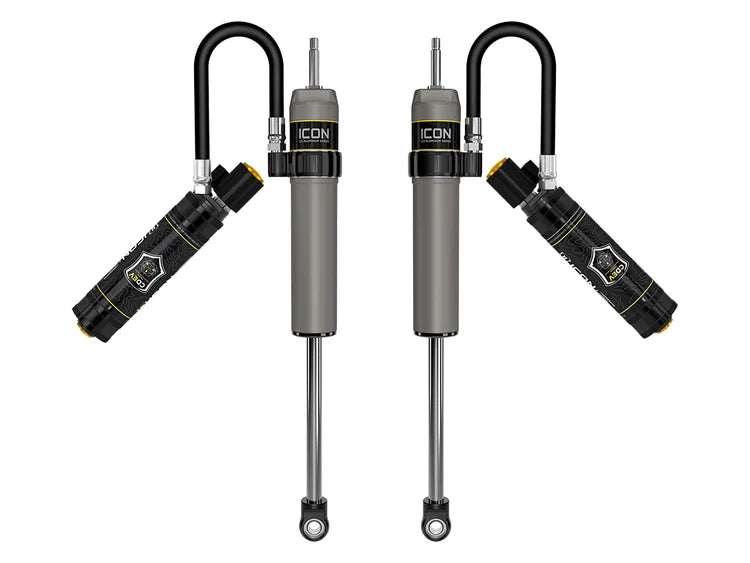

2.5" VS Remote Reservoir CDEV Front Shocks - for 7" Lift - (Pair)

Features:

• Supports 7" front lift
• Fits 2017-2022 Ford F250/F350 Powerstroke 4WD
• Corrosion resistant
• Premium grade 5WT shock oil for consistent damping
• 7/8" diameter induction chrome plated shock shaft
• 6061 aircraft grade aluminum CNC machines components
• One-piece hard anodized impact extruded aluminum cylinders
• Bump-zone
• Fully rebuildable and re-tunable

Made To Handle All Harsh Road Conditions

ICON Vehicle Specific (V.S.) 2.5" Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. Like all ICON'S Shock Absorbers, V.S. 2.5" Aluminum Series shocks with CDEV are fully rebuildable and re-tunable. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.

Control Your Oil Flow With The CDEV

An electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. The infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

Fitment: 2017, 2018, 2019, 2020, 2021, 2022 Ford F250/F350 Super Duty 4WD w/ 7" Front Lift

Notes:

• Fitment confirmed for 2017–2022 Ford F‑250/F‑350 4WD trucks with 7″ front lift

• Vehicle fitment is determined by chassis and lift height, not by engine type.
• Compatible with all factory engines, gas, diesel, including PowerStroke
• Designed specifically for 7″ lift builds; not universal for all heights.
• Requires ICON Intelligent Control Module (IIC 93500) to operate included CDEV system.
• Also requires pairing with ICON rear CDEV shocks to ensure proper system performance.
• Shocks are application-tuned and vehicle-specific, not adjustable without IIC system installed.
• Not intended for stock height trucks or non-ICON lift configurations.
• (2) ICON .5" VS Remote Reservoir CDEV Front Shocks.
• Product images may be representative.

Install Instructions
