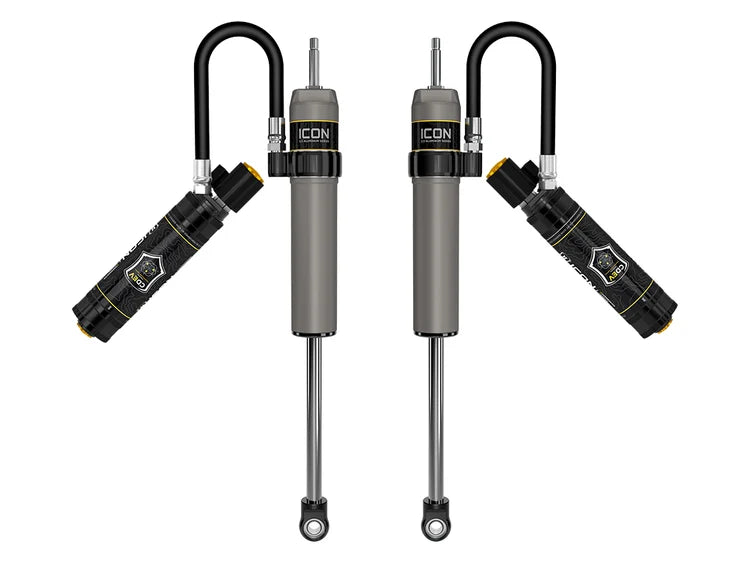

2.5" VS Remote Reservoir CDEV Front Shocks - for 4.5" Lift - (Pair)

Features:

• Supports 4.5" front lift
• Fits 2017-2022 Ford F250/F350 Powerstroke 4WD
• Corrosion resistant
• Premium grade 5WT shock oil for consistent damping
• 7/8" diameter induction chrome plated shock shaft
• 6061 aircraft grade aluminum CNC machines components
• One-piece hard anodized impact extruded aluminum cylinders

• Fully rebuildable and re-tunable
• Bump-zone

Made To Handle All Harsh Road Conditions

ICON Vehicle Specific (V.S.) 2.5" Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. Like all ICON'S Shock Absorbers, V.S. 2.5" Aluminum Series shocks with CDEV are fully rebuildable and re-tunable. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.

Control Your Oil Flow With The CDEV

An electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. The infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

Fitment: 2017, 2018, 2019, 2020, 2021, 2022 Ford F250/F350 Super Duty 4WD w/ 4.5" Front lift

Notes:

• Fits 2017–2022 Ford F250/F350 Super Duty 4WD trucks
• Confirmed for 4.5" front lift or 2.5" with Tremor package
• Compatible with both diesel and gas engine models
• Not compatible with 2WD trucks or non-lifted setups
• Fully rebuildable and re-tunable for long-term use
• Features CDEV electronic valve for terrain-based adjustment
• Controlled by ICON Intelligent Control and mobile app
• Shock body made from CNC machined 6061 aluminum
• Uses a 7/8" induction-hardened chrome shock shaft
• Includes piggyback reservoir and internal bump zone
• Internal bump zone increases damping by 20% at full stroke
• Designed to handle aggressive off-road conditions and towing
• (2) ICON 2.5" VS Remote Reservoir CDEV Front Shocks
• Product images may be representative
