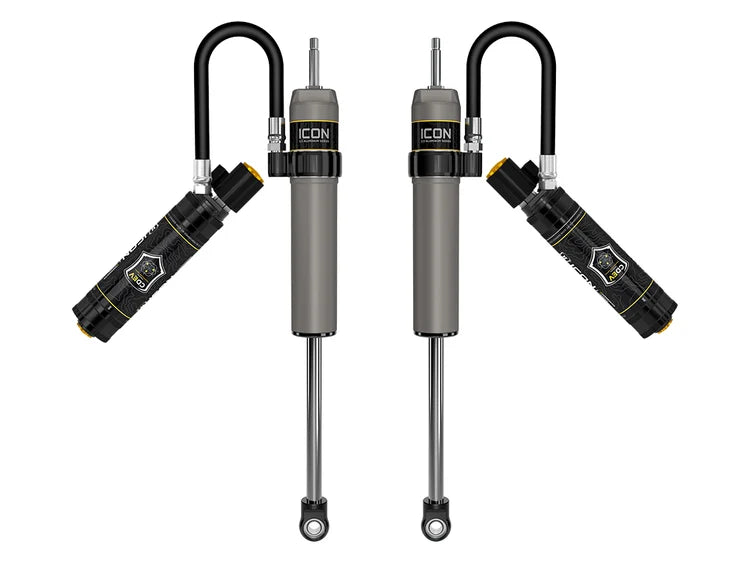

ICON 67800EP 2.5 inch Front VS RR CDEV Pair Shocks | 2017-2022 Ford F250/F350 Super Duty 4WD

Features:

• Corrosion resistant
• Premium grade 5WT shock oil for consistent damping
• 7/8" diameter induction chrome plated shock shaft
• 6061 aircraft grade aluminum CNC machines components
• One-piece hard anodized impact extruded aluminum cylinders
• Bump-zone
• Fully rebuildable and re-tunable

Made To Handle All Harsh Road Conditions

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks with CDEV are fully rebuildable and re-tunable. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.

Control Your Oil Flow With The CDEV

An electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. The infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

Vehicle Fitment: 2017, 2018, 2019, 2020, 2021, 2022 Ford Super Duty 4WD F250/F350

Notes:

• Fits 2017–2022 Ford F‑250/F‑350 4WD trucks with 0–2.5″ front lift only.
• Compatible with all factory gas and diesel engines.
• Vehicle-specific tuning; chassis and lift-based, not engine-specific.
• Requires ICON IIC module (93500/93502) and rear CDEV shocks.
• Remote reservoirs and electronic CDEV valves enable adaptive damping.
• Built-in bump zone delivers 20% extra damping under full compression.
• Fully rebuildable and revalveable for long-term performance.
