Front Box Kit - for 7" Lift

Features:

• Essential for ICON 7 inch lift systems
• Fits 2008-2010 Ford F250/F350 Super Duty 4WD
• Corrects track bar angle and axle placement
• Helps reduce steering bump steer
• Corrects steering geometry after lifting
• Includes 4 inch drop pitman arm
• Prevents sway bar binding
• Retains stock replacement steering stabilizer compatibility
• Heavy duty quarter inch steel bracket
• CNC machined aluminum bump stop spacers
• Corrosion resistant powder coat finish
• Fully bolt on installation
• Installation hardware included

Make Seven Inches Of Lift Work Together

Going seven inches taller changes a lot underneath your Super Duty, so the smaller supporting parts become just as important as the major suspension components. The ICON 67020 Front Box Kit brings together key hardware needed for an ICON 7 inch lift system on 2008-2010 Ford F250 and F350 Super Duty 4WD trucks. Instead of simply raising the front end and accepting compromised geometry, this kit helps reposition the track bar and steering components so they work properly at the new ride height. The included drop pitman arm helps keep the steering drag link and track bar working together, which addresses the bump steer that can occur when their angles no longer match. Sway bar drop brackets also restore a more appropriate operating angle and help prevent binding as the suspension moves through its travel. Even the steering stabilizer is accounted for with a dedicated drop bracket that maintains compatibility with a stock replacement stabilizer shock. With these important details handled in one package, you can build your 7 inch ICON suspension around components designed to complement each other from the start.

Corrected Geometry Starts With The Right Hardware

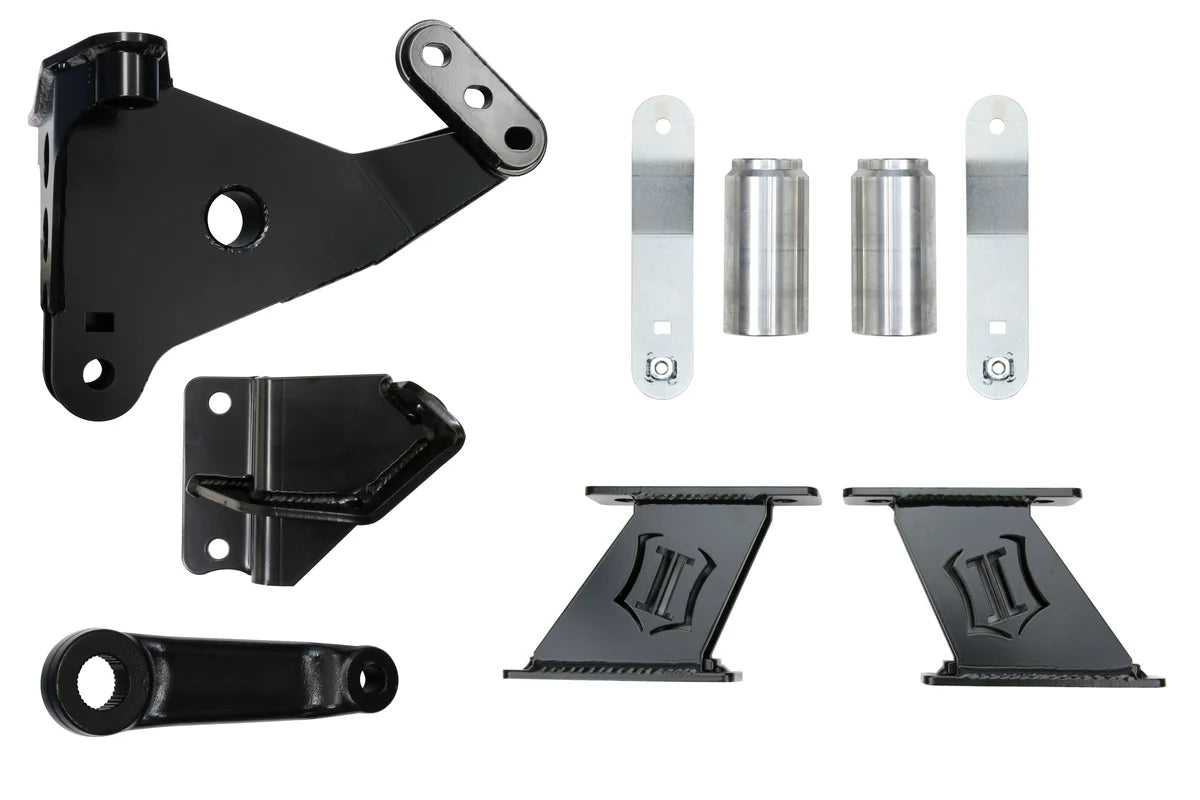

The ICON 67020 Front Box Kit uses application specific components to address the steering and suspension geometry changes created by an ICON 7 inch lift on 2008-2010 Ford Super Duty 4WD models. At the center of the package is a front track bar drop bracket fabricated from CNC laser cut and brake formed .25 inch steel plate, which helps establish proper track bar angle and axle placement. A 4 inch drop pitman arm corrects steering geometry by bringing the drag link into better alignment with the relocated track bar. This relationship is important because keeping the drag link and track bar parallel helps eliminate bump steer caused by mismatched operating angles. ICON also includes a fabricated steering stabilizer drop bracket that allows a stock replacement stabilizer shock to mount to the drag link while remaining compatible with the drop pitman arm. Front sway bar drop brackets prevent binding throughout suspension travel, while CNC machined aluminum bump stop spacers provide another supporting piece for the lifted configuration. The system installs using included hardware, and its fabricated components receive a corrosion resistant semi gloss black powder coat finish backed by ICON's Limited Lifetime Warranty.

Fitment: 2008, 2009, 2010 Ford F250/F350 Super Duty 4WD w/ 7" Front Lift

Notes:

• Fits 2008-2010 Ford F250/F350 Super Duty 4WD models.
• Designed specifically for ICON 7" lift systems.
• This is a supporting component kit.
• Includes a 4" drop pitman arm.
• Includes a front track bar drop bracket.
• Includes front sway bar drop brackets.
• Includes a steering stabilizer drop bracket.
• Includes aluminum bump stop spacers.
• Supports stock replacement steering stabilizer fitment.
• Installation hardware is included.
• Verify lift height and drivetrain before ordering.
• California residents should review Proposition 65 warnings.

• Product images may be representative.
