Front Box Kit - for 4.5" Lift

Features:

• Essential for ICON 4.5 inch lift systems
• Fits 2008-2022 Ford F250/F350 Super Duty 4WD
• Prevents sway bar link binding
• Maintains bind free sway bar movement
• Retains factory brake lines
• No aftermarket brake lines required
• Avoids opening the factory brake system
• Properly limits suspension bump travel
• Heavy duty aluminum bump stop spacers
• CNC machined for precise fitment
• Laser cut steel drop brackets
• Corrosion resistant powder coated components
• Backed by ICON Limited Lifetime Warranty

Give Every Part Of Your Lift Room To Work

A good lift kit is about more than getting your Super Duty higher off the ground, because the supporting components still need room to move correctly. The ICON 64050 Front Box Kit handles those important details for 2008-2022 Ford F250 and F350 Super Duty 4WD trucks running an ICON 4.5 inch lift suspension system. Its sway bar drop brackets reposition the sway bar to help the links move without binding as the front suspension cycles through its travel. ICON also includes brake line drop brackets that let you retain the original brake lines, saving you from purchasing aftermarket lines or opening the brake system during installation. When the suspension compresses, heavy duty bump stop spacers properly limit bump travel to help keep everything operating within the intended range. These components are built from carefully machined and formed materials, giving the truck dependable hardware suited for demanding off road use. Put it all together and this box kit takes care of several easy to overlook details that help your complete 4.5 inch ICON suspension system work the way it was designed.

Purpose Built Hardware Controls Critical Suspension Clearances

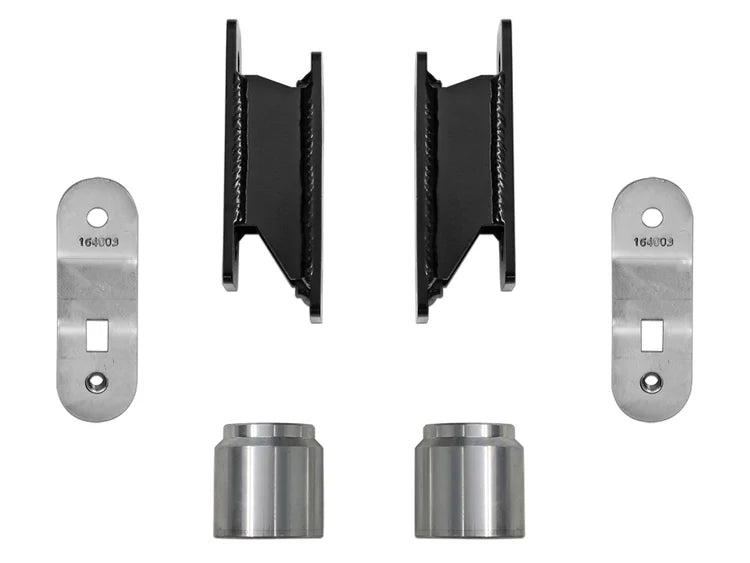

The ICON 64050 Front Box Kit combines several application specific components required to support a 4.5 inch ICON suspension system on 2008-2022 Ford F250 and F350 Super Duty 4WD models. The sway bar drop brackets are fabricated from CNC laser cut steel plate and reposition the sway bar to prevent binding at the links throughout suspension travel. Brake line drop brackets are CNC laser cut and brake formed to provide the additional positioning needed while retaining the factory brake lines. This design means the brake system does not need to be opened during installation, which simplifies that portion of the suspension upgrade. ICON also uses CNC machined 6061 aluminum bump stop spacers to properly limit bump travel as the suspension compresses. These spacers are engineered to handle the stresses associated with aggressive off road driving, while the steel sway bar brackets receive a powder coat finish for corrosion resistance. All included components are covered by ICON's Limited Lifetime Warranty, adding long term confidence to this essential part of the complete lift system.

Fitment:  2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022 Ford F250/F350 Super Duty 4WD w/ 4.5" Front Lift

Notes:

• Fits 2008-2022 Ford F250/F350 Super Duty 4WD models only.
• Designed for ICON 4.5" lift suspension systems.
• This is a supporting component kit.
• Factory brake lines can be retained.
• Aftermarket brake lines are not required.
• Brake system does not require opening during installation.
• Includes sway bar drop brackets.
• Includes brake line drop brackets.
• Includes bump stop spacers.
• Verify drivetrain and lift height before ordering.
• California residents should review Proposition 65 warnings.

• Product images may be representative.
