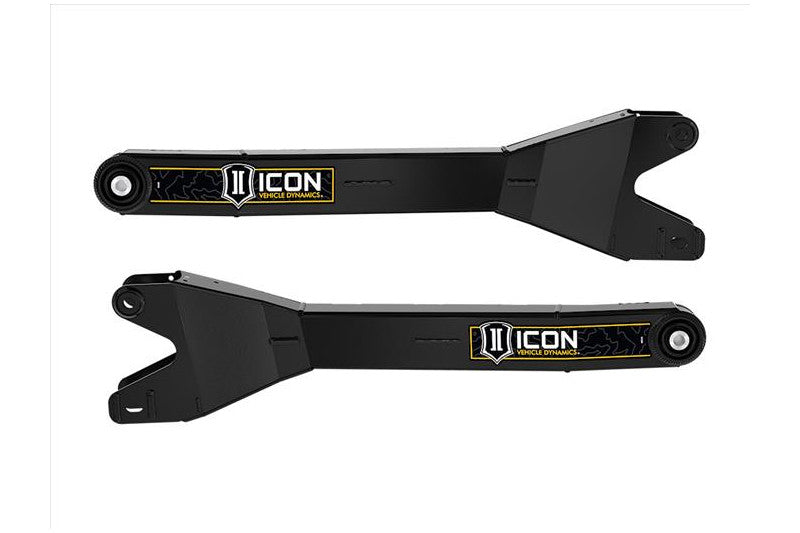

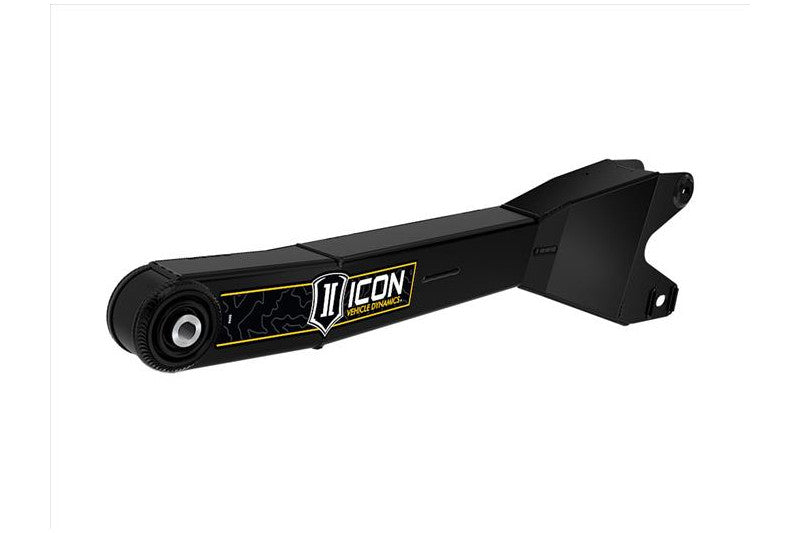

Radius Arm System - for 0-3" Lift - (Pair)

Features:

• Supports 0-3" front lift height
• Fits 2023-2024 Ford F250/F350 Super Duty
• Fully boxed design
• Built in caster adjustment
• Replaceable sealed pivot bushing
• Semi-gloss black powder coat finish
• Ability to have a 5.5” backspace wheel with 37” tires
• CNC machined and laser cut steel components

Enhances Your Drive Quality and Performance

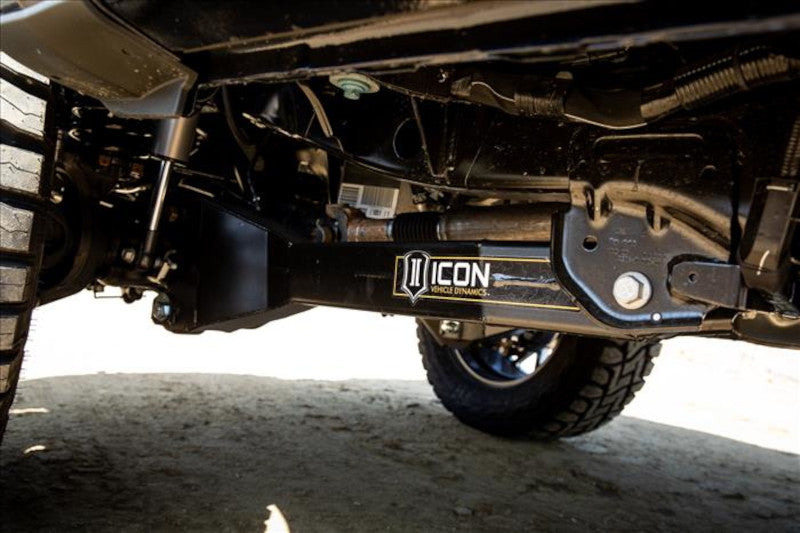

The ICON Vehicle Dynamics Ford 2023-2024 F-250 and F-350 Super Duty 4WD Radius Arm System is designed with adjustable caster cams for use with stock height trucks up to 3” of front lift with the radius arm installed in the factory pivot, eliminating the need for caster bushings. They feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.

Fitment: 2023, 2024 Ford F250/F350 Super Duty 4WD w/ 0-3" Front Lift

Notes:

• Fits 2023-2024 Ford F250 and F350 Super Duty 4WD
• Compatible with 0-3" front lift height
• Eliminates need for caster bushings on lifted trucks
• Built-in caster adjustment via included cam hardware
• Fully boxed steel design improves rigidity and strength
• Sealed pivot bushings reduce noise and road feedback
• Optimized clearance for 37" tires with 5.5" backspace wheels
• CNC machined and laser-cut components ensure precision fit
• Powder-coated semi-gloss black for corrosion resistance
• Direct replacement for factory radius arms
• Enhances handling and steering geometry on lifted setups
• Not compatible with trucks equipped with OnBoard Scales
• (2) ICON Radius Arms.
• Product images may be representative
