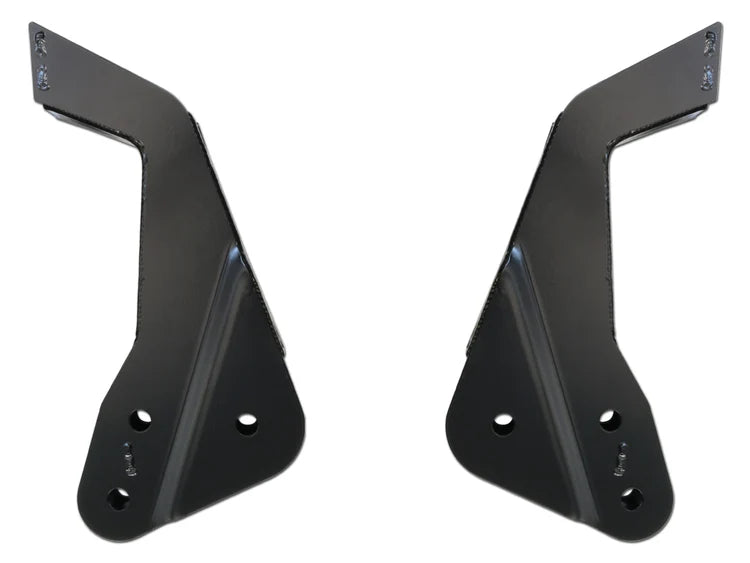

Front Radius Arm Drop Kit - for 4.5-7” Lift - (Pair)

Features:

• Supports ICON 4.5 to 7 inch lifts
• Fits 2005-2010 Ford F250/F350 Super Duty 4WD
• Reduces factory radius arm angle
• Aids proper caster correction
• Fits stock or aftermarket radius arms
• Heavy duty steel plate construction
• CNC laser cut for precise fitment
• Brake formed for added strength
• Built for aggressive off road use
• 100 percent bolt on installation
• No cutting or welding required
• Corrosion resistant powder coat finish
• Backed by ICON Limited Lifetime Warranty

Keep Your Radius Arms Working At The Right Angle

Adding serious lift to a Super Duty changes more than its stance, and getting the suspension geometry back where it belongs is an important part of building the truck correctly. The ICON 64040 Radius Arm Drop Kit is designed for 2005-2010 Ford F250 and F350 Super Duty 4WD trucks running ICON suspension systems with 4.5 to 7 inches of lift. By lowering the mounting position of the radius arms, these brackets reduce the increased arm angle created by taller suspension setups and help with caster correction. The result is a suspension configuration that better complements the added ride height instead of leaving the radius arms at an undesirable angle. You can also keep your stock radius arms or pair the brackets with compatible aftermarket arms, giving you more flexibility when planning the rest of your build. Better yet, the kit bolts into place without cutting or welding, so you can make the necessary geometry correction without permanent fabrication. For a lifted Super Duty that sees everything from daily driving to rough terrain, these brackets provide a strong and practical way to get the radius arm setup working with your suspension.

Steel Brackets Engineered For Serious Suspension Loads

ICON builds the 64040 Radius Arm Drop Kit around fabricated steel brackets designed to handle the loads generated by lifted Super Duty suspension systems. The brackets are CNC laser cut from steel plate for precise dimensions before being brake formed into their final shape for strength and rigidity. Their application specific geometry relocates the radius arm mounting points to accommodate ICON suspension systems providing 4.5 to 7 inches of lift. This relocation reduces radius arm angle and assists with caster correction on 2005-2010 Ford F250 and F350 Super Duty 4WD applications. ICON engineered the brackets to withstand the stresses associated with aggressive off road driving, making their construction well suited for trucks that regularly encounter demanding terrain. A corrosion resistant semi gloss black powder coat finish protects the steel while providing a clean appearance beneath the truck. The complete assembly uses a fully bolt on installation with no cutting or welding required, and ICON backs the fabricated components with its Limited Lifetime Warranty.

Fitment:  2005, 2006, 2007, 2008, 2009, 2010 Ford F250/F350 Super Duty 4WD w/ 4.5-7" Front Lift

Notes:

• Fits 2005-2010 Ford F250/F350 Super Duty 4WD models.
• Designed for ICON 4.5" to 7" lift systems.
• Compatible with stock or aftermarket radius arms.
• Intended to correct radius arm positioning after lifting.
• Aids caster correction on taller suspension setups.
• No cutting or welding is required.
• Verify suspension lift height before ordering.
• Sold as a pair of drop brackets.
• California residents should review Proposition 65 warnings.
• (2) ICON Front Radius Arms.
• Product images may be representative.
