BDS 585H 6 inch Lift Kit with NX2 Nitro Shocks & 3 inch Blocks | 2011-2016 Ford F250/F350 Powerstroke 4WD Gas

Share Post Pin E-mail Copy link
Click to open expanded view
MANUFACTURER: BDS SUSPENSION

6 inch Lift Kit with NX2 Nitro Shocks & 3 inch Blocks

Fitment: 2011-2016 Ford F250/F350 Powerstroke 4WD Gas
SKU: BDS585H
$2,481.80
Ships From Manufacturer in 1-3 Days
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Visa

Features:

  • Easy, 100% Bolt-on installation
  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty radius arm drop brackets provide correct caster and will maintain your stock driving characteristics.
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Steel lift blocks with built-in bump stop provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Improve the ride and create more tire clearance on your 2011-2016 Ford Super Duty F250 and F350 gas truck and install this 6-inch lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty radius arm drop brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks. In the rear this kit utilizes a replacement GlideRide leaf springs with integrated overload leaf, u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

BDS Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design where the main leaf pack is broken into two stages:

  1. First, the primary three leafs are functional with no additional load in the vehicle for excellent everyday?ride quality. As moderate loads are applied, the secondary leafs are engaged.
  2. Second, if the truck is fully loaded, the bottom overload is engaged for maximum hauling capacity. This setup allows your truck to maintain ride quality unloaded without sacrificing payload.

Upgrading to BDS Glide-Ride leaf springs will reduce axle wrap and provide flexibility throughout the suspension cycle.

Rear Lift Option

This lift system retains the factory rear blocks with the addition of the new BDS leaf springs to achieve a level stance. Choose the height of your factory lift blocks for proper u-bolt length.

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Recommended Tires & Wheels

  • 37 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 37 x 12.5 with 18 x 9 and 4.5 in. Backspace
  • 37 x 12.5 with 20 x 9 and 4.5 in. Backspace

Fitment:

2011-2016 Ford F250/F350 4WD Gas with Factory 3" Rear Blocks

Important Notes:

  1. Front exhaust modification may be required to clear front drive shaft (gas only).
  2. If equipped with 2-piece driveshaft, a driveshaft alignment kit may be required.
  3. Although extremely rare, front driveline vibration may occur.
  4. If equipped with rear sway bar, #123009 required.
  5. U-bolts will not work on dually.

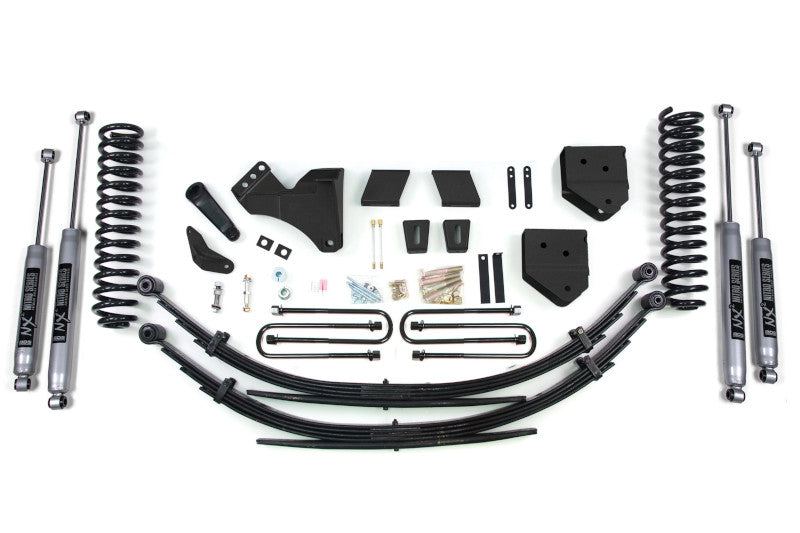

Kit Includes:

  • Ford F250/350 6in Rear Spring (003629 x2)
  • 2011-2016 Ford F250/F350 Rear Box Kit -- 3-1/2" Factory Block (013609)
  • 11 Ford F250/350 6in Box Kit (013610)
  • 2005-2016 Ford F250/F350 6in (Gas) Coil Kit (033612)
  • Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2 (85750 x2)
  • Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1 (85760 x2)
Year Ranges Make Model Series Engine
2011-2016 Ford Super Duty F250/F350 6.7L Powerstroke
Property Values
Year Ranges 2011-2016
Make Ford
Model Super Duty
Series F250/F350
Engine 6.7L Powerstroke
