ReadyLift 49-2782 8 inch Lift Kit with Bilstein Shocks | 2017-2019 Ford F250/F350 6.7L Powerstroke 4WD

F-250/F-350 4WD Diesel ReadyLift 8" Lift Kit Features:

• Premium Lift Kit for Super Dutys
• Includes Bilstein B8 5100 Series Front & Rear Shocks
• Accommodates for up to 37" Tires
• Provides 8" of front lift
• Gives your truck an aggressive stance/li>
• Delivers more ground clearance

Premium 8" Lift Kit for Diesel Super Dutys

Elevate your 2017-2019 F-250/F-350 4WD Diesel Super Duty to new heights with the ReadyLift 8" Lift Kit, a premium solution for those seeking an impressive lift that doesn't compromise on factory ride quality. This comprehensive kit includes everything you need to achieve a commanding stance while ensuring rugged durability and optimal performance. At the heart of this kit are the new comfort-riding 8" lift front coil springs, designed for maximum durability and a smooth ride. The package also features a heavy-duty fabricated steel front track bar relocation bracket, perfectly complemented by fabricated steel radius arm drop brackets. These components provide unmatched strength and stability, making this lift kit a dependable choice for tackling any terrain. With a front lift of 8 inches, this kit accommodates for up to 37" tires, giving your truck an aggressive stance and delivering substantial ground clearance. The comprehensive package includes sway bar drop brackets, an OEM-style drop pitman arm, bump stop extensions, brake line extended brackets, and even a steering stabilizer to optimize your truck's handling qualities.

High-Quality Construction & Design

The ReadyLift 8" Lift Kit also includes (4) Bilstein 5100 extended length shocks, which, when combined with the lift kit, ensure an exceptional ride quality. In the rear, lift is achieved with heavy-duty fabricated steel 6" tall rear lift blocks featuring OEM-style bump stop landings. Paired with double add-a-leaf springs, they provide a matching rear height to complement the front lift. This kit even includes a new transmission cross member and driveshaft spacer to optimize drive train geometry and ensure smooth performance under acceleration. Compatible with trucks featuring both one-piece and two-piece driveshafts, it's a versatile and dependable solution for any Super Duty owner seeking to elevate their vehicle. Please note that the lift blocks in this kit are not designed for use with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs. Such systems may void block warranties and compromise block bump stop tang integrity.

Vehicle Fitment: 2017, 2018, 2019 Ford F-250/F-350 Super 4WD - Diesel

Application Notes:

• Single Cab configuration has not been validated for fitment & drivability by ReadyLift.

Wheel and Tire Fitment:

• 38" Maximum tire diameter
• 37x12.50 for no rub on a 9" wide wheel with 0 offset
• 38x13.50 on 10" wide wheel with +12 offset
• 18" Wheel - 37X12.5R18
• 20" Wheel - 37X12.5R20
• 22" Wheel - 325/60R22

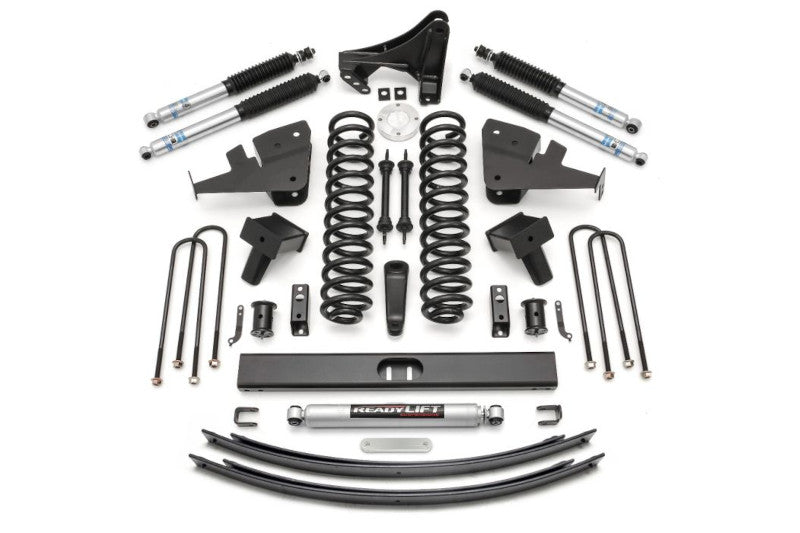

Kit Includes:

• 8" Lift springs
• Heavy Duty fabricated steel front track bar bracket
• ReadyLift-branded heavy duty fabricated steel radius arm drop brackets
• OEM style drop pitman arm
• Longer sway bar end links
• Sway bar drop brackets
• Bump stop extensions
• Brake line extension brackets
• 6" tall fabricated steel rear lift blocks with longer u-bolts
• (4) Bilstein shocks
• (1) front steering stabilizer
• (1) Transmission/Transfer Case crossmember

Year Ranges	Make	Model	Series	Engine
2017-2019	Ford	Super Duty	F250/F350	6.7L Powerstroke

Property	Values
Year Ranges	2017-2019
Make	Ford
Model	Super Duty
Series	F250/F350
Engine	6.7L Powerstroke
