Standard Output 6 inch Big Lift Kit

Features:

• Fits 2019-2024 RAM 3500 4WD Cummins diesel
• 6 inch front lift with new coil springs
• Driveline Indexing System with clocking ring
• Adjustable transmission crossmember included
• Bilstein 5100 series front and rear shocks
• Heavy duty radius arm drop brackets
• Fabricated steel front and rear track bar brackets
• Dropped cast iron pitman arm
• Front and rear sway bar relocation brackets
• Rear taper lift blocks included
• Clears up to 37x13.50 tires
• Extended U bolts and hardware included

Go Big On Height And Keep The Driveline Happy

If you have been picturing a real 6 inch lift under your 2019-2024 Ram 3500 Cummins, you have probably wondered what it does to the driveline. The ReadyLift 49-19630 Standard Output 6 inch Big Lift Kit was engineered to answer that question for 4WD diesel 3500s. ReadyLift already has a popular 6 inch kit for the fifth generation Ram 2500, and this one is built specifically for the 3500. The big addition is the Driveline Indexing System, which pairs a CNC machined billet aluminum transfer case clocking ring with an OEM output shaft seal and an adjustable transmission crossmember. Those pieces reposition the transmission and pinion so the truck drives smoothly on the street and off road. Up front you get heavy duty coil springs for the 6 inch lift, and the kit includes new Bilstein 5100 series shocks front and rear. ReadyLift lists clearance for a 37x13.50 tire, so you can run serious rubber and have the stance to match. For an owner who tows, works the truck hard, and still wants it to ride right, this kit covers the whole job.

Inside The Kit That Resets Your Driveline Angles

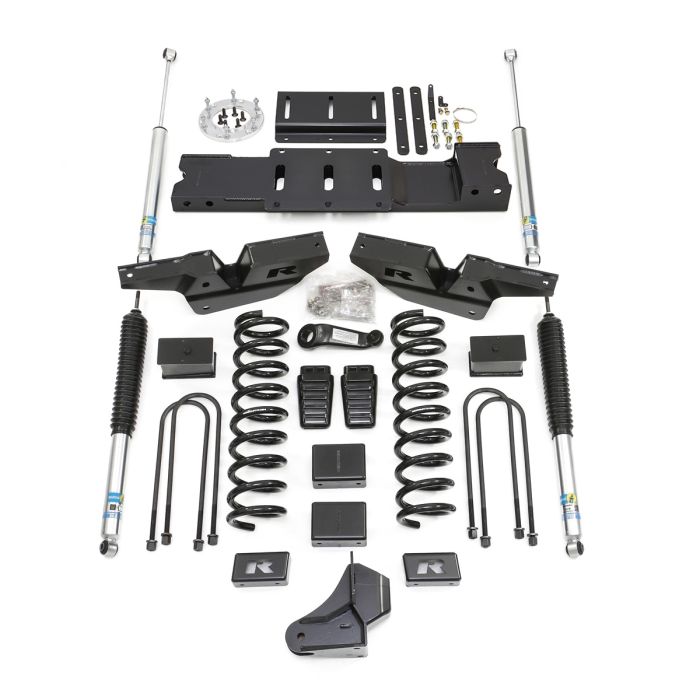

The 49-19630 is a complete application specific system, and the parts list shows how much of the truck it addresses. The Driveline Indexing System includes an 8 bolt clocking ring, a transfer case spacer, a transmission crossmember, a mounting plate, a mount spacer, and the brackets needed to relocate the transmission connector and harness. Up front, heavy duty radius arm drop brackets and a fabricated steel track bar bracket restore proper axle geometry after the lift. A dropped cast iron pitman arm and front and rear sway bar relocation brackets help the steering and sway bar work at the new ride height. In the rear, fabricated taper lift blocks and extended U bolts raise and secure the axle. Bump stop extensions keep the new Bilstein 5100 series shocks from over compressing. The kit also includes extended brake line brackets and e-brake extensions, along with a full hardware pack. ReadyLift lists a maximum fitment of 37x13.50 on a 9 inch wide wheel with a negative 18 offset.

Fitment: 2019, 2020, 2021, 2022, 2023, 2024 RAM 3500 4WD 6.7L Cummins Diesel Standard Output

Notes:

• Fits 2019-2024 Ram 3500 4WD Cummins diesel models
• Will not fit high output 6.7L models with the Aisin transmission
• Will not fit HEMI gasoline models
• Will not fit dually models
• Will not fit Classic models
• Will not fit models with automatic leveling rear air suspension
• Includes Bilstein 5100 series front and rear shocks
• Includes Driveline Indexing System with clocking ring and OEM output shaft seal
• Includes adjustable transmission crossmember and hardware pack
• Rear lift block height is [VERIFY: 4 inch vs 5 inch]
• Maximum tire is 37x13.50 on a 9 inch wheel with -18 offset
• Test fit every tire and wheel combination before installation
• Larger 10 ply E tires can make the ride feel stiffer than stock
• Consult your local installer about the right tire fitment for your application
