6 inch 4-Link Lift Kit with NX2 Shocks & 3 inch Block with out Overload

• Easy, 100% Bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control

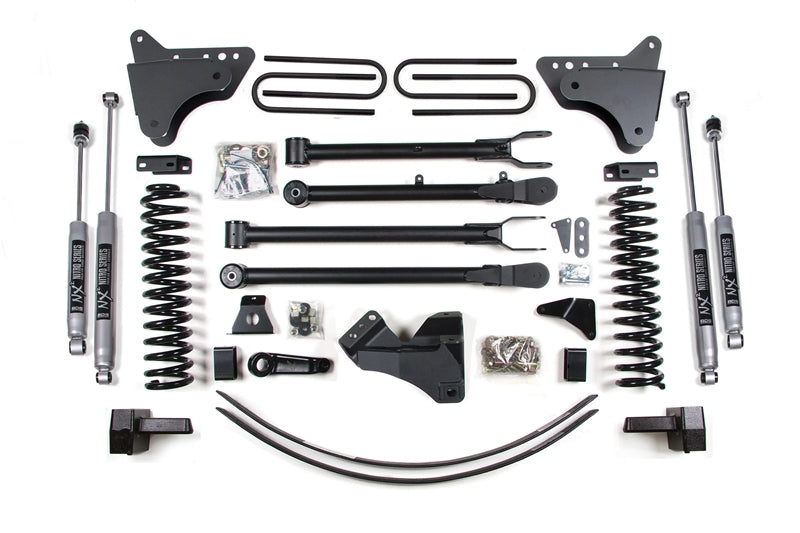

Take your 2005-2007 Ford Super Duty F250 and F350 gas truck to the next level with this 6-inch lift kit plus 4-link conversion from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty 4-link control arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks. In the rear the base kit utilizes a high strength lift blocks, longer u-bolts, brake line brackets and a matching set of NX2 Nitro shocks.

A pair of full-length, gas-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength ¼-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

• 2005-2007 Ford F250/F350 Super Duty 4WD Gas

• 37 x 12.5 with 17 x 9 and 4.5 in. Backspace
• 37 x 12.5 with 18 x 9 and 4.5 in. Backspace
• 37 x 12.5 with 20 x 9 and 4.5 in. Backspace

Note - the factory leaf packs were made with or without a top mounted overload spring. Please inspect your vehicle before ordering.

• Add-a-leaf helps freshen up old worn-out factory leaf springs.
• Blocks are made from cast iron for max strength.
• Includes new center pins.

NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

• These trucks were manufactured with and without top mounted overload springs on the rear leaf springs. A top mounted overload is an extra leaf separate from the pack that set above the main leaf. You will need to identify which you have before ordering.
• The kit comes with a single steering stabilizer in the kit, but you can upgrade to a dual system in the customize your kit section.
• If your vehicle is equipped with a carrier bearing, you will need the Shim Kit – sold separately.
• Do not install the 4" rear block kit on vehicles equipped with a factory 3-7/8" rear block. Only use rear spring option on these vehicles.
