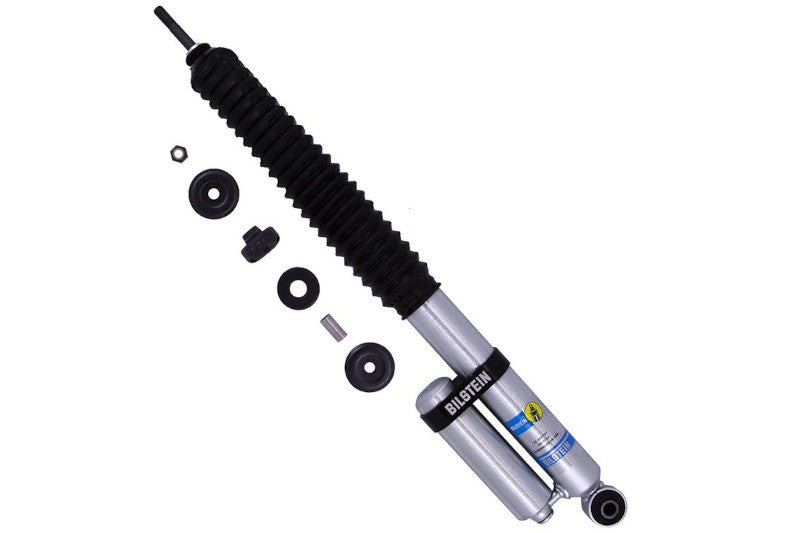

B8 5160 Rear Shock - for 4" Lift - (Single)

Features:

• Supports 4" rear lift
• Fits 2014-2026 RAM 2500 4WD w/o air leveling
• Zinc plated finish with clear coating
• Remote reservoir for increased oil capacity
• Specifically designed and manufactured for lifted pickups and SUVs
• Monotube design for cooler, more efficient operation and longer life
• 46mm piston diameter provides superior handling and performance
• Maximum comfort and control on or off-road
• Limited lifetime warranty

Durable And Off-Road Ready

Bilstein B8 5160 Series stock-mount remote reservoir shocks feature the company's industry-leading monotube design, with a reservoir mounting configuration specifically designed for each application. Their unique digressive valving system instantly produces full damping capabilities for serious off-road performance and control. The remote reservoir dramatically increases shock oil capacity for excellent heat dissipation and damping sensitivity. A floating dividing piston is located in the reservoir of these shocks to offer increased wheel travel and more shaft movement. Special swivel banjo fittings on the reservoir hose allow for 360 degrees of rotation. Bilstein's exclusive Triple-C Technology finish provides the B8 5160 Series shocks with lasting great looks and easy care.

Take Your Rig Off-Road With Corrosion Resistant Shock Absorbers

This Bilstein 5160 Series 25-285734 Remote Reservoir Shock Absorber is custom valved for the RAM 2500. Feature a remote reservoir that dramatically increases shock oil capacity for even greater heat dissipation and damping sensitivity. A corrosion resistant zinc plated finish with a clear coating is used for increased protection. The mono-tube gas pressurized design keeps your vehicle handling at its peak at all times by eliminating shock fading common in hydraulic shocks. Bilstein 5160 Series shocks are perfect for trucks and suvs that have been lifted. The extra demands larger tires and a taller stance require more suspension performance. Bilstein's patented digressive valving is perfect for these conditions.

Fitment: 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 RAM 2500 4WD w/ 4" rear lift/Non-air Leveling Suspension

Notes:

• Fits 2014-2026 Ram 2500 4WD without rear air leveling.
• Designed for trucks with a 4 inch lift.
• Direct fit replacement for compatible applications.
• Sold individually. Most trucks require two rear shocks.
• Remote reservoir increases cooling and oil capacity.
• Billet reservoir clamp is included.
• 360 degree swivel banjo fitting eases reservoir routing.
• 46mm monotube design delivers consistent damping.
• Non-adjustable damping requires no tuning.
• No boot or spring seat is included.
• Zinc plated finish resists corrosion.
• Covered by Bilstein's Limited Lifetime Warranty.
• Product images may be representative.
