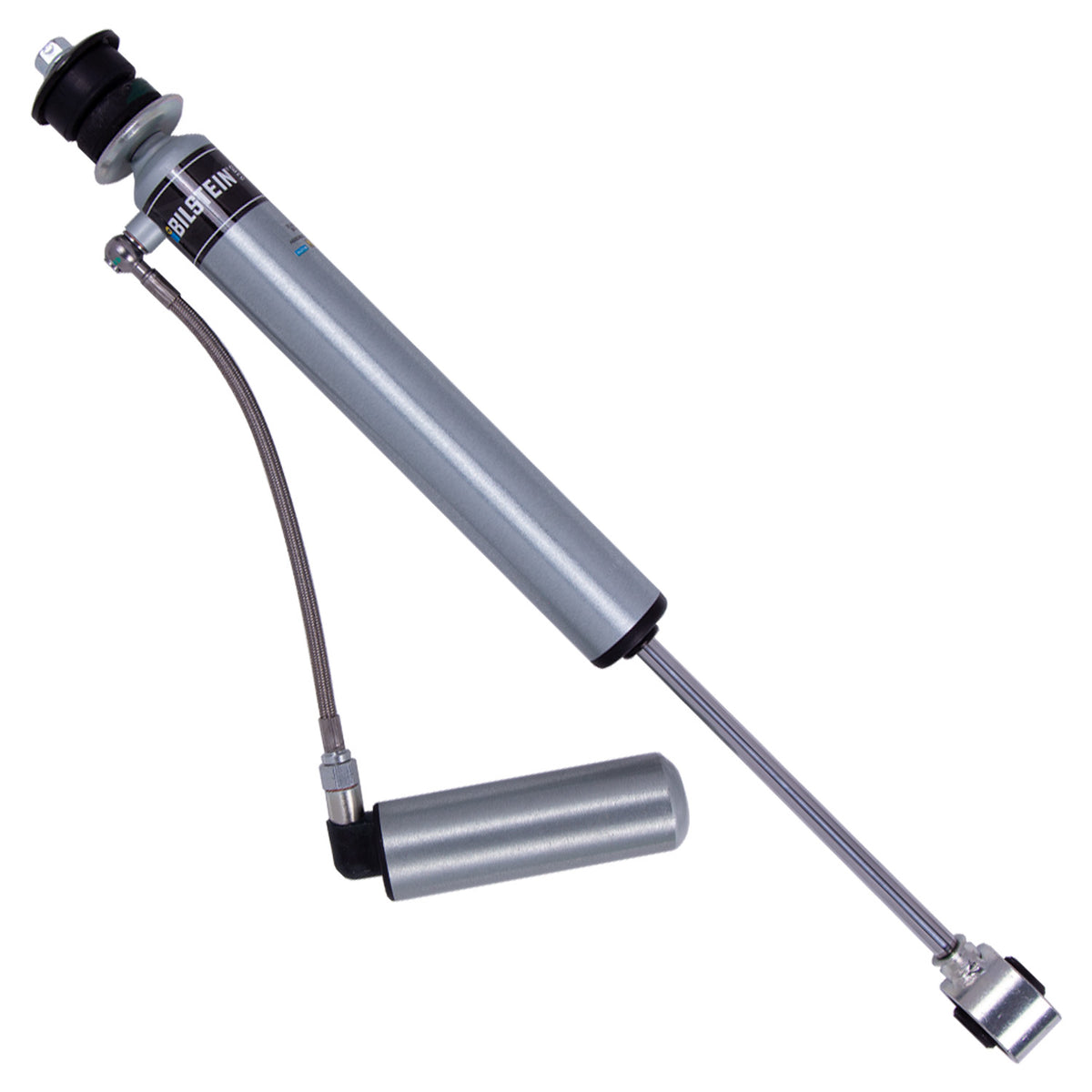

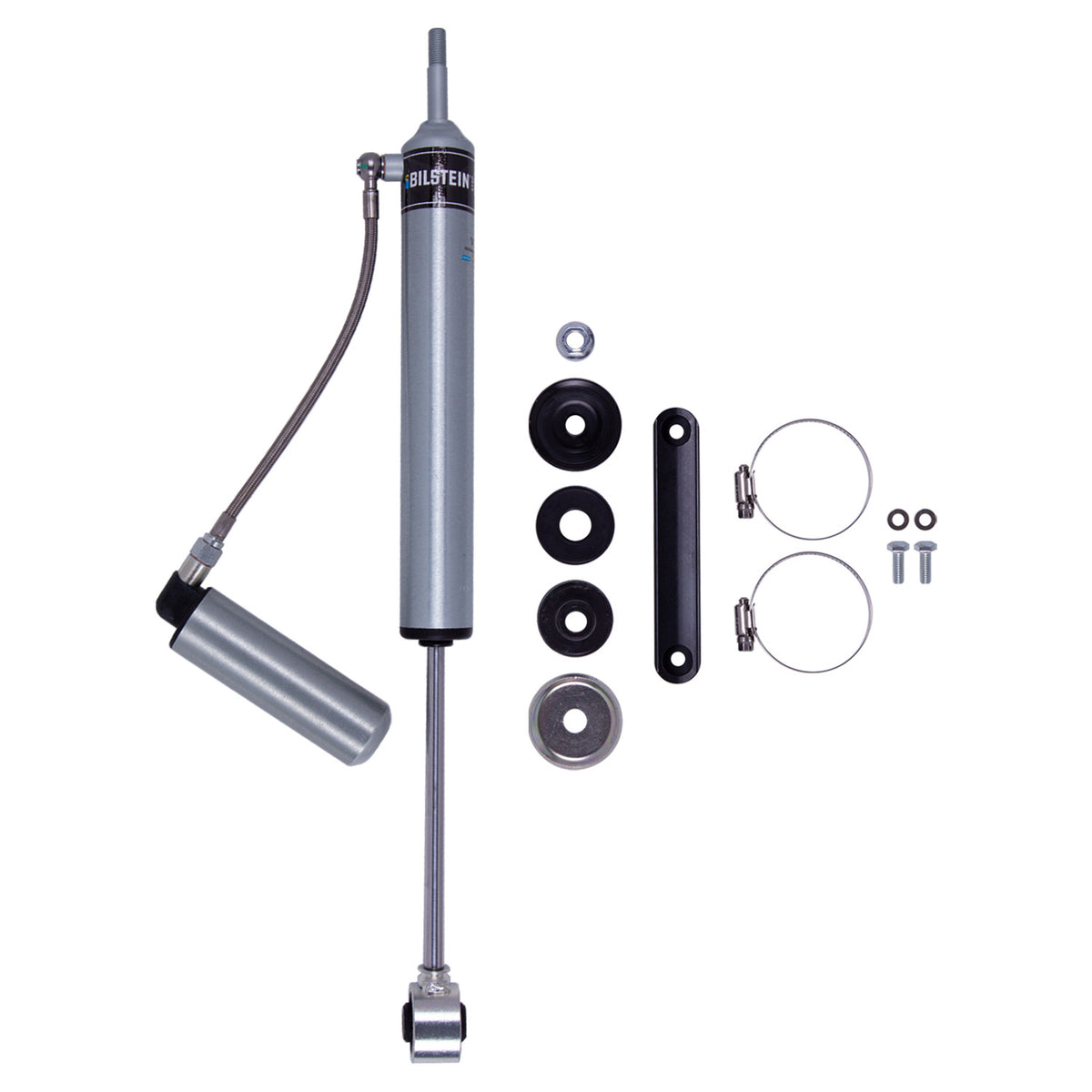

B8 5160 Front Shock - for 0-2" Lift - (Single)

Features:

• Supports 0-2" front lift
• Fits 2014-2026 RAM 2500 4WD gas or diesel

• Remote reservoir improves heat dissipation
• 46mm monotube design ensures consistent damping
• Digressive valving reacts to terrain instantly
• Swivel banjo fitting allows 360° hose rotation
• Triple-C coating resists corrosion and wear
• Increases front wheel travel and suspension control
• Direct bolt-on with no modifications required
• Gas-charged for fade-free off-road performance
• Includes spring seat for easy integration
• Sold individually with black rubber bushings

Lift Your Rig And Get More Dampening

Bilstein B8 5160 Series stock-mount remote reservoir shocks feature the company's industry-leading monotube design, with a reservoir mounting configuration specifically designed for each application. Their unique digressive valving system instantly produces full damping capabilities for serious off-road performance and control. The remote reservoir dramatically increases shock oil capacity for excellent heat dissipation and damping sensitivity. A floating dividing piston is located in the reservoir of these shocks to offer increased wheel travel and more shaft movement. Special swivel banjo fittings on the reservoir hose allow for 360 degrees of rotation. Bilstein's exclusive Triple-C Technology finish provides the B8 5160 Series shocks with lasting great looks and easy care.

Fitment: 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 RAM 2500 4WD Diesel/Gas w/ 0-2" front lift

Specs:

• Extended Length: 24.04
• Collapsed Length: 15.22
• Internal Design: Monotube
• Adjustable Valving: No
• Gas Charged: Yes
• Upper Mount: Stud
• Lower Mount: Eyelet
• Bushing Material: Rubber
• Bushing Color: Black
• Boot Included: No
• Body Diameter (in.):1.811
• Quantity: Sold Individually
• Note: Spring Seat Included

Notes:

• Fits 2014-2026 RAM 2500 4WD gas and diesel models
• Designed for use with 0-2" front suspension lift
• Sold individually – order two for a complete front setup
• Remote reservoir must be mounted properly to avoid damage
• Swivel banjo fitting simplifies reservoir hose alignment
• Does not include dust boot or mounting brackets
• Not compatible with rear suspension or RAM 3500 models
• Shock includes spring seat for use with factory coil springs
• Ideal for trucks used in off-road or towing conditions
• Professional installation recommended for reservoir routing
• Part of Bilstein’s high-performance B8 5160 series
• Product images may be representative
