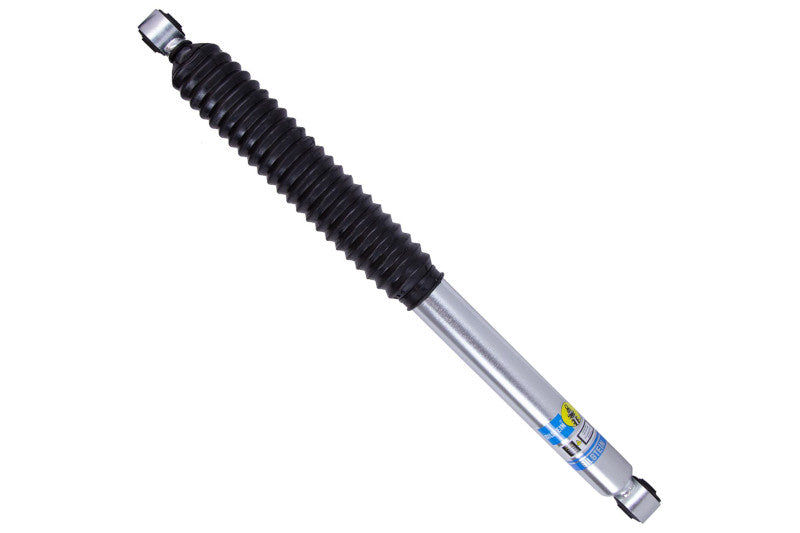

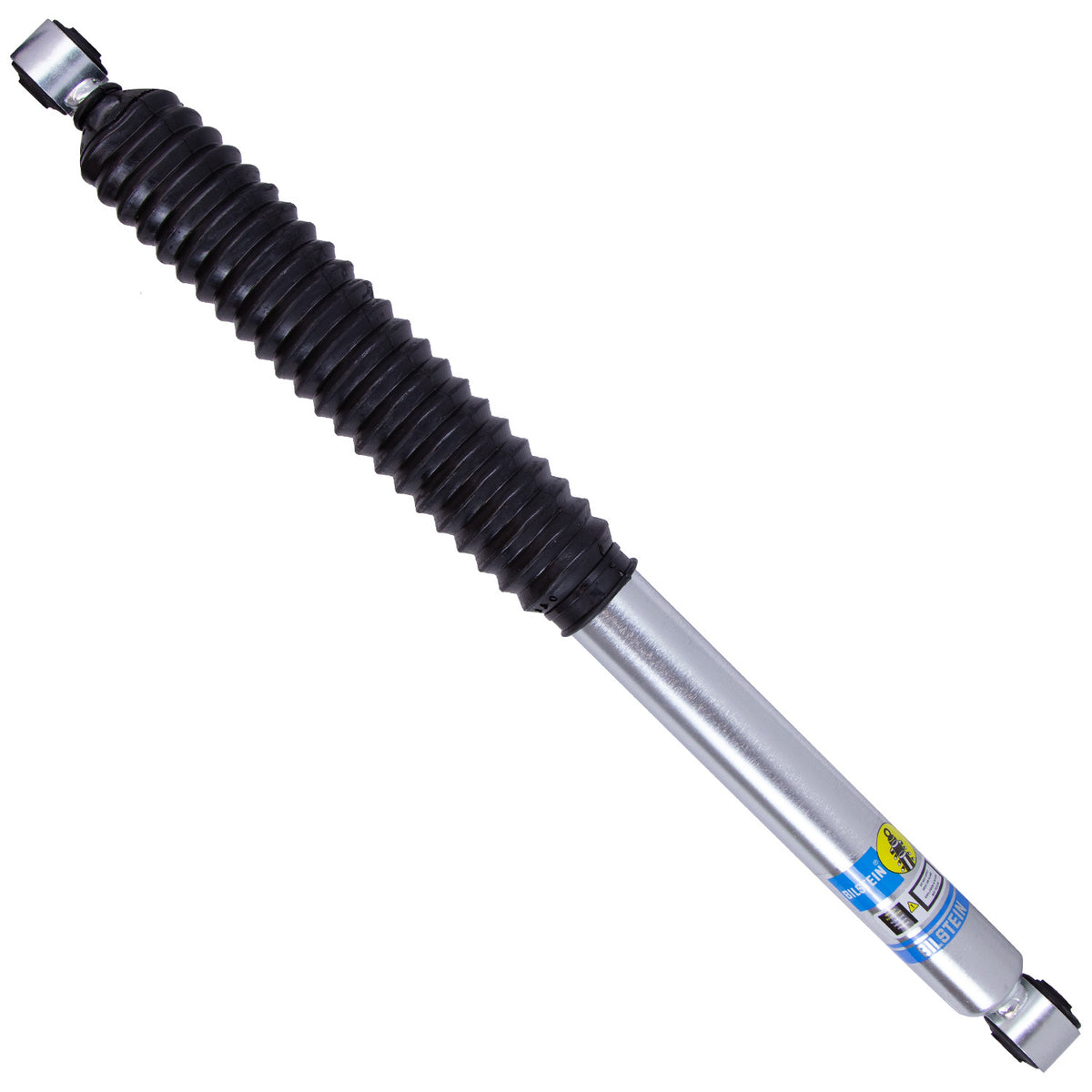

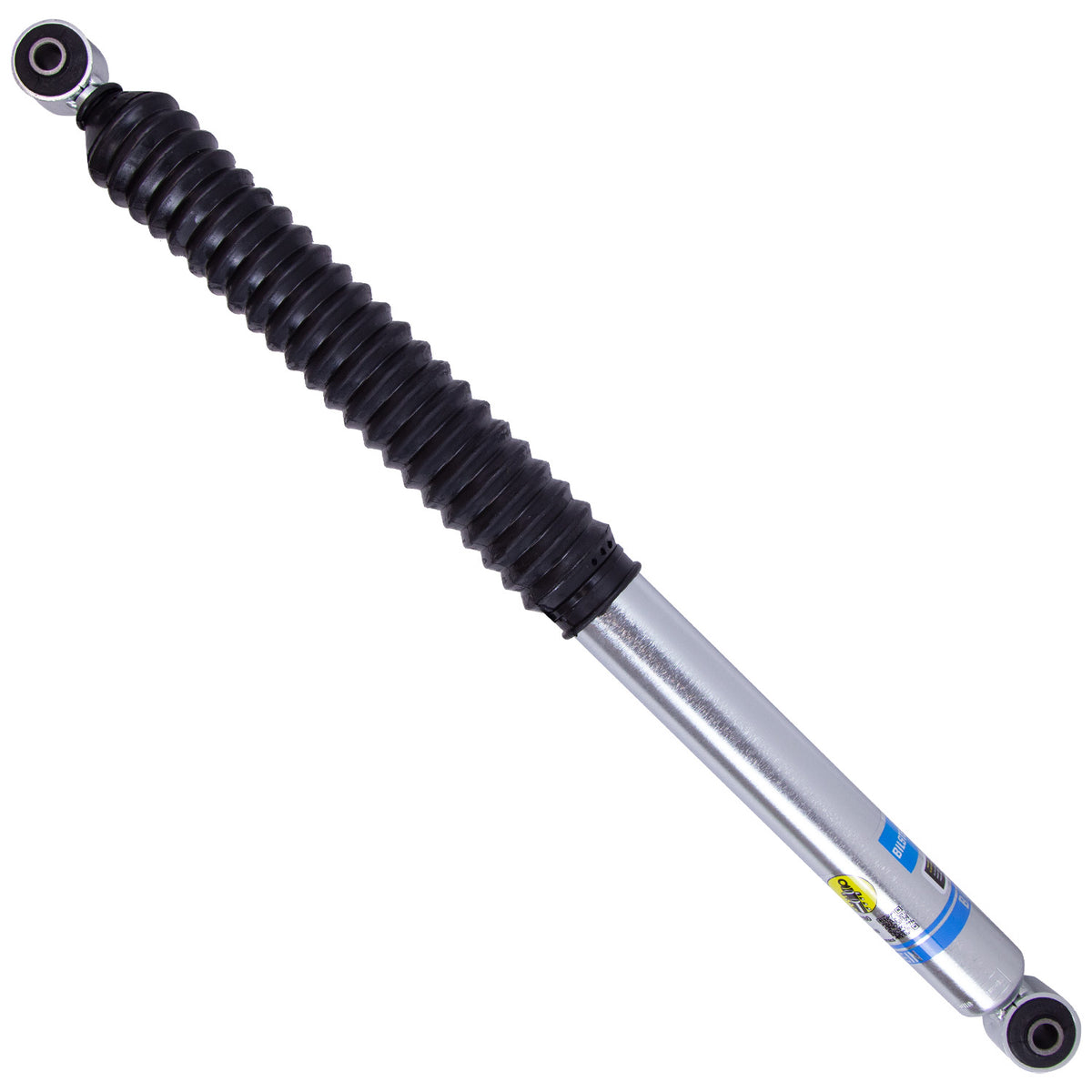

Bilstein 24-285780 B8 5100 Series Shock Absorber for 2-3 inch Lift | 2018-2025 RAM 3500 4WD

Features:

• 2 in. seamless extruded tube
• 14mm centerless-ground, case-hardened, chromed, and super-polished rod
• 46mm Bilstein digressive piston
• Self-adjusting, deflective-disc independent rebound and compression

Bilstein B8 5100 Series shocks feature a monotube design for cooler, more efficient operation and longer life. They have the largest available piston diameter, providing superior handling and performance. The shocks' patented digressive valving instantly reacts to changing surface conditions for maximum comfort and control, on and off the road. These shocks also have split compression and rebound valving tuned for each specific application.

Specs:

• Extended Length: 29.88in
• Collapsed Length: 19.57in
• Internal Design: Monotube
• Adjustable Valving: No
• Gas Charged: Yes
• Upper Mount: Stud
• Lower Mount: Eyelet
• Bushing Material: Rubber
• Bushing Color: Black
• Boot Included: Yes
• Body Diameter (in.):1.811
• Quantity: Sold Individually

Vehicle Fitment: 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025 Dodge Ram 3500 4WD

Notes:

• Specifically designed to reduce rear axle wrap and power hop on high-torque trucks
• Tuned for 2018–2025 Ram 3500 models with 4WD and rear leaf springs
• Not intended for use on stock-height trucks or trucks with air suspension
• Shock measures 29.88in extended and 19.57in collapsed, check lift compatibility
• Monotube design improves heat dissipation and maintains consistent performance
• Sold individually, order two if upgrading both sides
• Installs with upper stud and lower eyelet mounts, no custom brackets required
• Digressive piston valving automatically adapts to changing road conditions
• Large 46mm piston delivers greater control under load and during acceleration
• Ideal for lifted or performance-modified trucks experiencing axle instability
