SKU: BIL24-274951

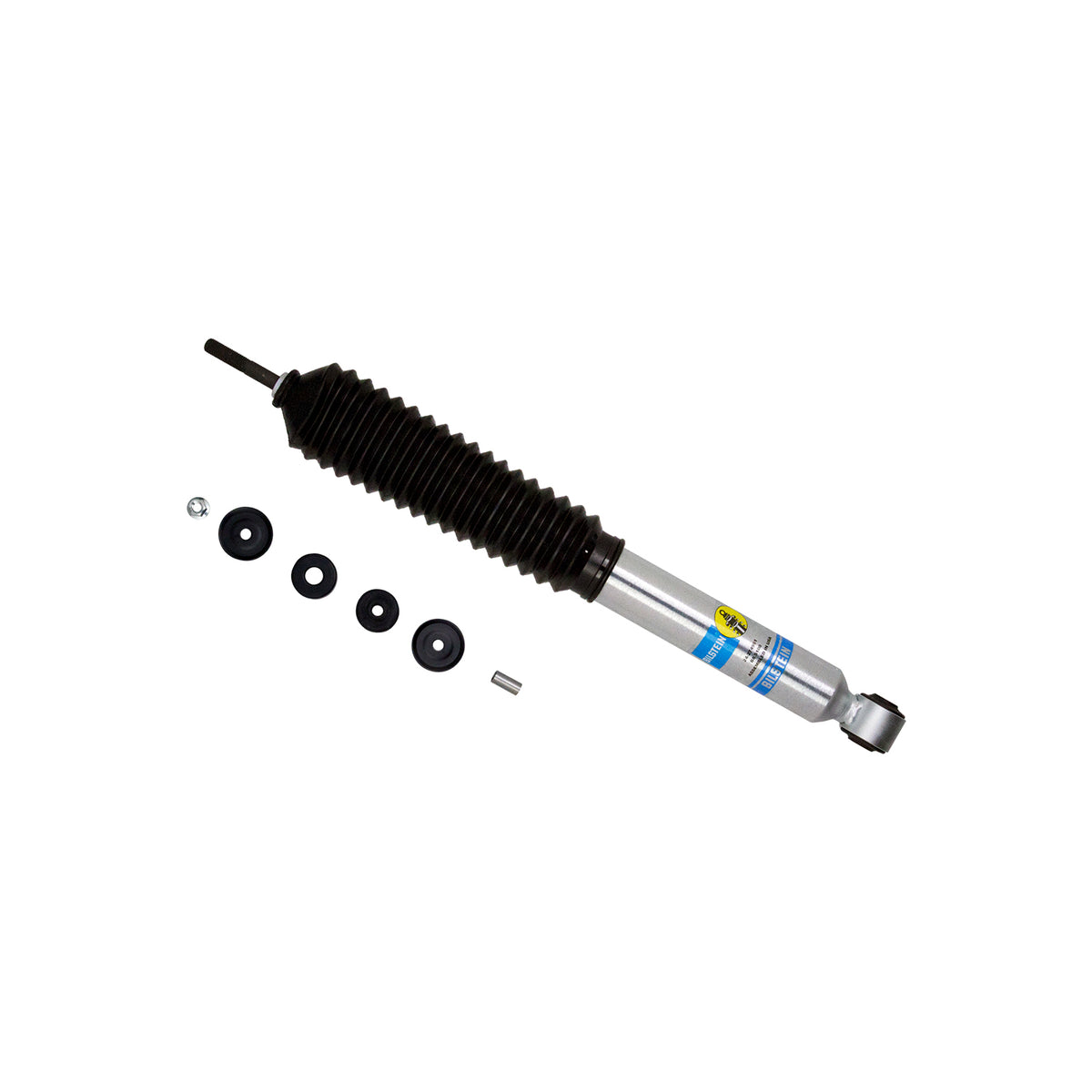

Bilstein 24-274951 B8 5100 Front Shock - for 0-2.5" Lift - (Single) | 2017-2026 Ford F250/F350 Super Duty

50 in stock and ready for shipping
Confirmed fitment below
YEARS
2017-2026
MAKE / MODEL
Ford / Super Duty
SERIES
F250/F350
ENGINE
6.7L Powerstroke
Sale price
$123
Regular price
$172
SAVE $49
or
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Visa
Free Shipping
ORDERS $70+
Easy Returns
HASSLE-FREE
Earn Rewards
ALLIGATOR POINTS
Not sure this fits your build?
Our diesel experts know these trucks. Call or chat before you buy.
1-208-719-7400

PRODUCT DETAIL

Key Features & Description

The Bilstein 24-274951 B8 5100 Front Shock is a single, non-adjustable monotube front shock for 2017-2026 Ford F250/F350 Super Duty trucks with a 0-2.5 inch front lift. It has a velocity-sensitive digressive piston and a high-flow piston, a zinc finish, and a black bellows boot. It is sold individually, so order two for the front axle, and the source lists no engine for this fitment.

Check Your Truck First

Status Application
āœ… Fits 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 Ford F250/F350 Super Duty with a 0-2.5 inch front lift
āœ… Tremor package Lifted 0-2 inches
āœ… Non-Tremor trucks Lifted 2-2.5 inches
āœ… Quantity Sold individually. Order two for the front axle.
āŒ Not included Spring seat and a remote reservoir
āŒ Check first Your lift height and fitment. Bilstein asks you to verify both before ordering.
āŒ Not listed F450 and larger trucks, and model years outside 2017-2026. Chat with us to confirm before ordering.


Why Owners Install It

  • Monotube design that Bilstein says promotes efficient heat dissipation, so damping stays consistent during extended driving
  • Velocity-sensitive digressive piston that Bilstein says adjusts to changing road surfaces
  • High-flow piston that Bilstein says improves suspension response
  • Vehicle-specific valving, factory tuned for the 2017-2026 Super Duty and for lifted trucks
  • Zinc plated finish that Bilstein says resists corrosion, and a black bellows boot included to shield the shaft

What to Expect

  • Bilstein describes the shock as a direct-fit design that helps simplify installation.
  • The shock uses a stem upper mount and an eye lower mount.
  • The damping is non-adjustable and needs no manual tuning.
  • The spring seat is not included, and no remote reservoir is included.
  • Verify your lift height and fitment before ordering.
  • Install time is not listed.
  • Bilstein install instructions (PDF)

Specifications

Brand Bilstein
Part Number 24-274951
Product Type B8 5100 Front Shock (Single)
Fits 2017-2026 Ford F250/F350 Super Duty
Position Front
Lift Height 0-2.5 inch. Tremor package: 0-2 inch. Non-Tremor: 2-2.5 inch.
Quantity Sold individually. Order two for the front axle.
Design High pressure monotube, with a velocity-sensitive digressive piston and a high-flow piston
Valving Non-adjustable, vehicle specific, factory tuned
Finish Zinc plated
Boot Black protective bellows boot included
Mounts Stem upper, eye lower
Spring Seat Not included
Remote Reservoir Not included
Extended Length, Collapsed Length, and Travel Not listed
Tuning Required Not applicable
Install Time Not listed
Warranty Not listed
Emissions Not listed


FAQs

What trucks does the 24-274951 fit?

It is listed for 2017-2026 Ford F250/F350 Super Duty trucks with a 0-2.5 inch front lift. The lift range is 0-2 inches for trucks with the Tremor package, and 2-2.5 inches for non-Tremor trucks.

Does it come as a single shock or a pair?

It is sold individually as one front shock. Order two for the front axle.

Is it adjustable?

No. The damping is non-adjustable, with vehicle-specific valving that is factory tuned.

What mounts does it use?

It uses a stem upper mount and an eye lower mount.

Does it include the spring seat or a reservoir?

No. The spring seat is not included, and no remote reservoir is included.

What warranty does it have?

The source doesn't list a warranty. Chat with us before ordering and we will help confirm.

Questions about fitment? Chat with us.
