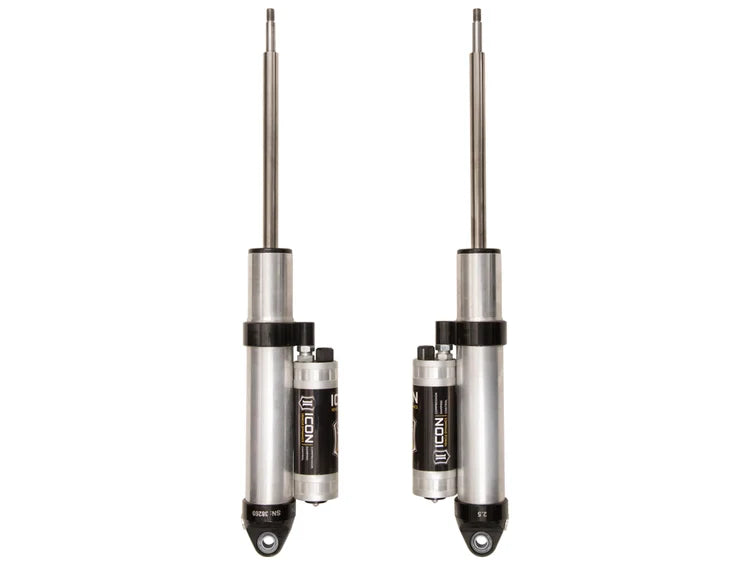

2.5" VS Performance Piggy CDCV Rear Shocks - for 1/2" Lift - (Pair)

Features:

• Supports 1/2" rear lift
• Fits 2014-2026 RAM 2500 4WD
• 10-position CDC compression damping adjustment
• Internal Bump Zone adds 20% damping
• Piggyback reservoirs improve heat dissipation
• Vehicle specific valving improves ride control
• Nitrogen charged monotube shock design
• 6061 aircraft grade aluminum components
• Corrosion resistant aluminum shock bodies
• Hardened 7/8 inch chrome plated shafts
• Premium oil supports consistent damping
• OE style mounting supports factory fitment
• Fully rebuildable and revalveable design
• Optimized for ICON half inch coils

Turn Every Drive Into A Better Ride

A RAM 2500 can spend the morning handling daily traffic and the afternoon bouncing down a rough access road, so having rear shocks you can adjust for the situation makes a lot of sense. The ICON 217705CP 2.5 inch VS Performance Piggyback CDCV Rear Shocks bring that versatility to 2014-2026 RAM 2500 4WD trucks using the compatible half inch rear lift setup. Each shock features an external CDC valve with 10 compression settings, letting you change the damping response with a simple turn of the knob when road conditions or driving demands change. Piggyback reservoirs help manage heat during extended use, which is valuable when rough terrain keeps the rear suspension cycling for long periods. ICON also builds an internal Bump Zone into the shock that adds 20 percent more damping as the suspension approaches full compression, helping keep hard impacts and sudden bottom outs under better control. Vehicle specific valving keeps the overall response tailored to the Ram instead of relying on a generic shock tune, while the aluminum construction provides excellent corrosion resistance for long term use. Pair them with ICON part 214206 rear coil springs and you get a shock package whose length and tuning were specifically optimized to complement that half inch lift configuration.

Tuned Components Create Predictable Suspension Response

The 217705CP uses a nitrogen charged monotube architecture with a piggyback reservoir and one piece digressive piston to deliver controlled damping throughout the suspension cycle. ICON combines that piston with vehicle specific valving and premium grade 5WT shock oil, helping maintain consistent response across a wide range of temperatures and driving conditions. Compression damping can be changed through 10 settings using the external CDC valve, which controls oil flow into the reservoir and provides meaningful adjustment without requiring shock disassembly. When compression velocity increases and the shock approaches the end of its travel, the internal Bump Zone raises damping force by 20 percent to provide additional suspension control. The hardware includes a 7/8 inch induction hardened chrome plated shaft, CNC machined 6061 aircraft grade aluminum components, and an impact extruded aluminum cylinder for durability and corrosion resistance. Polyurethane bushings and forged steel mounting stems support an OE style fit, while PTFE lined spherical bearings and application specific hardware complete the mounting package. Additionally, these shocks are fully rebuildable and revalveable, giving owners the ability to service or retune the suspension as mileage accumulates or the truck's setup changes.

Fitment: 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 RAM 2500 4WD w/ 1/2" Rear Lift

Notes:

• Fits 2014-2026 RAM 2500 4WD models.
• Installs on the rear suspension.
• Sold as a pair.
• Designed around a half inch rear lift.
• Optimized for ICON 214206 rear coil springs.
• Shock length is tuned for ICON 214206 coils.
• CDC adjustment is performed at each shock.
• Ten compression damping settings are available.
• Application specific mounting hardware is included.
• Shocks are fully rebuildable and revalveable.
• (2) ICON 2.5" VS Performance Piggy CDCV Rear Shocks.
• Product images may be representative.
