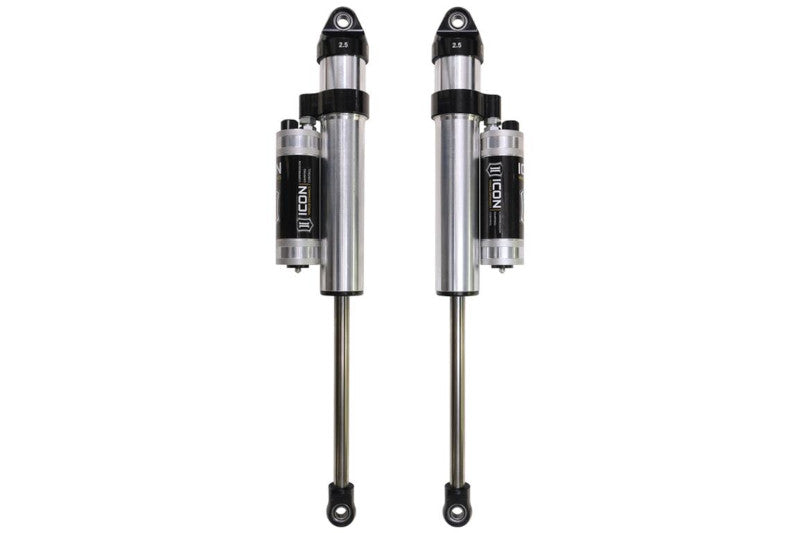

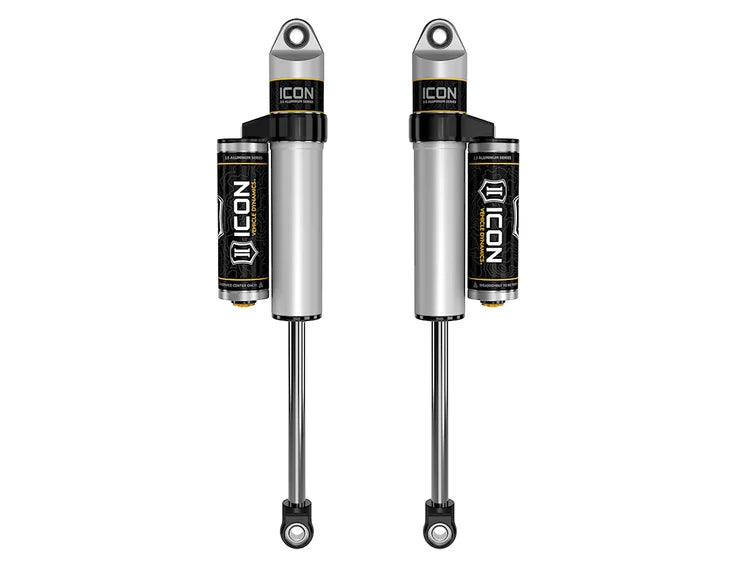

2.5" VS Piggyback Reservoir Rear Shocks - for 2-3" Lift - (Pair)

Features:

• Supports 2-3 inch lifts
• Fits 2003-2012 Dodge RAM 2500HD/3500HD
• Internal Bump Zone adds 20% damping
• Piggyback reservoirs improve heat dissipation
• Vehicle specific valving enhances ride quality
• Digressive pistons deliver controlled suspension response
• Nitrogen charged monotube shock design
• Aircraft grade 6061 aluminum components
• Aluminum cylinders provide excellent corrosion resistance
• Hardened 7/8 inch chrome plated shafts
• Premium oil maintains consistent damping performance
• Fully rebuildable and revalveable construction
• Upgradeable to ICON CDCV technology


Keep The Rear End Ready For Rough Ground

Once you start asking more from a lifted Ram, the rear shocks have to do more than simply smooth out bumps, and the ICON 217701P shocks are built with that reality in mind. Designed for 2003-2012 Dodge Ram 2500HD and 3500HD trucks with 2 to 3 inches of lift, these 2.5 inch piggyback reservoir shocks are tuned specifically for the application to deliver confident performance on the street and off the pavement. The piggyback reservoirs help manage heat during prolonged use, which means the shocks can maintain more consistent damping when rough terrain keeps the suspension working. When the suspension approaches full compression, ICON's internal Bump Zone increases damping force by 20 percent to help control hard impacts and reduce harsh bottom outs. That added control can make a real difference on washboard roads, uneven jobsite access, and trails where the rear suspension is constantly reacting to changing terrain. Premium aluminum construction also provides excellent corrosion resistance while keeping the shock package ready for demanding environments. Sold as a pair and fully rebuildable, these shocks give your lifted Ram a performance focused rear suspension upgrade that can be serviced and adapted instead of simply replaced.

Purpose Built Components Deliver Consistent Damping

Inside each ICON 217701P shock is a nitrogen charged monotube design paired with a one piece digressive piston and vehicle specific valving to create predictable suspension response throughout the shock's travel. ICON uses premium grade 5WT shock oil to maintain consistent damping across a wide temperature range, an important detail when conditions change between everyday driving and sustained off road use. The 7/8 inch diameter shock shaft is induction hardened and chrome plated, providing the strength and durable surface needed to handle repeated suspension cycling. CNC machined 6061 aircraft grade aluminum components are paired with impact extruded aluminum cylinders for corrosion resistance and a consistent finish. PTFE lined spherical bearings help provide precise mounting while application specific hardware supports proper installation on the intended truck platform. Additionally, the internal Bump Zone uses ICON's billet aluminum manifold design to generate 20 percent more damping as the shock nears full compression, giving the suspension additional control exactly when it is needed. Both shocks are completely rebuildable and revalveable, and the 2.5 Series design can also be upgraded with ICON's Compression Damping Control Valve for owners who want greater tuning capability later.

Fitment: 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012 Dodge RAM 2500HD/3500HD w/ 2-3" Lift

Notes:

• Fits 2003-2012 Dodge Ram 2500HD and 3500HD
• Designed for trucks with 2 to 3 inch lifts
• Sold as a pair for rear installation
• Vehicle specific tuning is built into each shock
• Shocks are fully rebuildable and revalveable
• Compatible with optional ICON CDCV upgrades
• CDCV functionality is not included standard
• Application specific mounting hardware is included
• (2) ICON 2.5" VS Piggyback Reservoir Rear Shocks
• Product images may be representative
