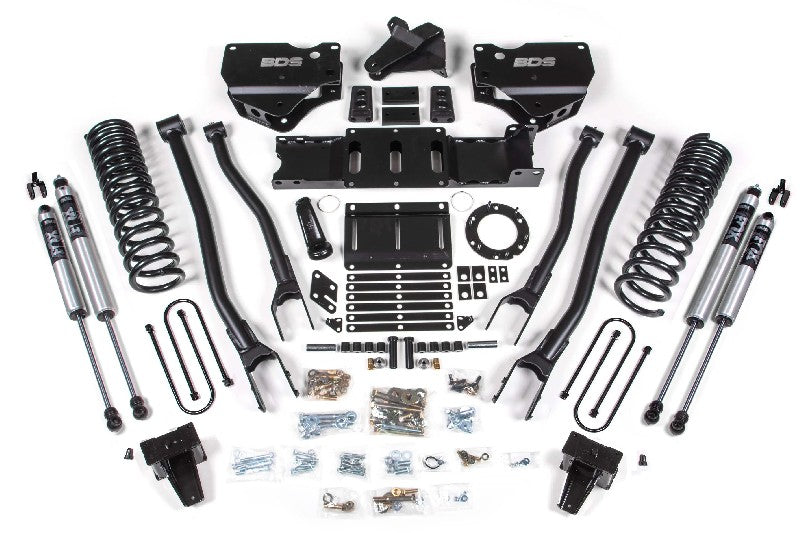

BDS 1695FS 5.5 inch 4-Link Lift Kit with FOX 2.0 Shocks | 2019-2024 RAM 3500 with Rear Overload Leaf

Features

• Converts factory radius arms to a true 4-link suspension for improved axle control and stability

• Gas-specific progressive-rate Pro-Ride coil springs deliver smooth, consistent front-end ride quality

• Heavy-duty upper and lower control arms paired with ¼-inch steel 4-link brackets for optimized suspension geometry

• Forged drop pitman arm and track bar relocation bracket correct steering geometry and recenter the front axle

• HD transmission crossmember and 15° transfer case indexing ring correct front driveline angles for use with factory driveshaft

• Includes FOX 2.0 Performance Series IFP gas shocks (front and rear) for superior damping and off-road control

• Clears up to 37” tires with proper wheel setup

Optimized 4-Link Geometry for Maximum Ride Stability

The BDS 1695FS 5.5" Lift Kit is tailored for 2019–2024 RAM 3500 gas trucks equipped with rear overload leaf springs. This system replaces the factory stamped steel radius arms with a true 4-link setup, delivering stronger, more stable suspension geometry and improved caster control throughout the wheel travel range.

Enhanced Handling and Precise Geometry Correction

At 5.5” of front lift, steering correction becomes critical. BDS includes a forged drop pitman arm, track bar drop bracket, and a transfer case indexing ring to align steering components and maintain smooth operation with the factory driveshaft. The HD crossmember reinforces transmission mounting for additional strength.

Tuned Coil Springs for Gas-Powered Trucks

The gas-specific Pro-Ride coil springs are tuned to provide a predictable ride and appropriate lift height across varying terrain. These work in harmony with the FOX 2.0 shocks, which feature internal floating piston (IFP) technology to separate nitrogen and shock oil, reducing fade and maintaining comfort during aggressive driving.

Rear Suspension Lift Setup

In the rear, 5" high-strength fabricated steel lift blocks, extended U-bolts, and FOX 2.0 Performance shocks level the stance and deliver reliable damping and load support.

Fitment

2019, 2020, 2021, 2022, 2023, 2024 RAM 3500 4WD Gas

• With rear overload leaf springs

• Designed for trucks with 6-bolt transfer case

Fitment Notes

• Not compatible with:

  • Diesel engine models

  • Rear air-ride suspension

  • Power Wagon trim

• Additional Requirements:

  • Manual transfer case requires BDS122423 (shifter extension)

  • 2-piece rear driveshaft requires BDS122406 (carrier bearing drop kit)

Recommended Wheel & Tire Fitment

• 37 x 12.50 tires

• 20 x 9 wheels with 5.625” backspacing
  (Trimming may be required based on tire/wheel combo)
