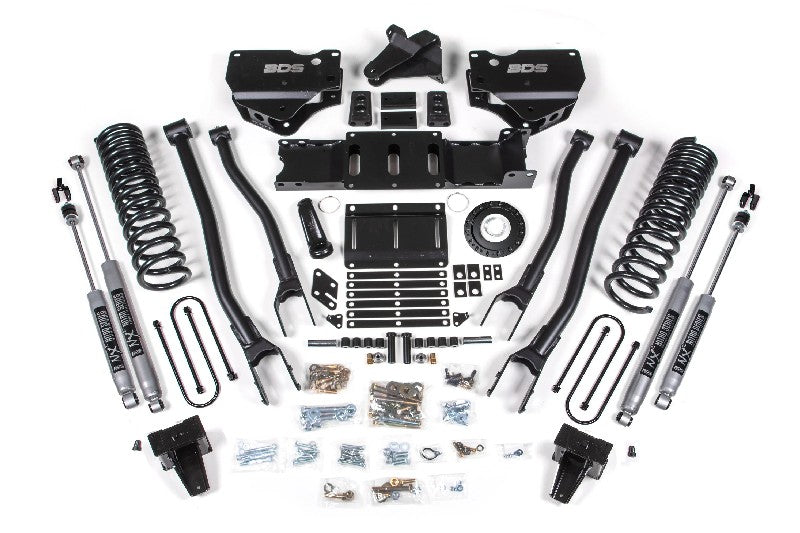

BDS 1693H 6 inch 4-Link Lift Kit with NX2 Nitro Shocks - 8 Bolt | 2019-2024 RAM 3500 w/ Rear Overload Leaf

Features

• Complete 4-link front suspension conversion for improved strength, stability, and caster control

• Progressive-rate Pro-Ride diesel-specific coil springs for a smoother, controlled ride

• Forged drop pitman arm and HD track bar bracket restore proper steering geometry and axle positioning

• Front sway bar relocation brackets maintain stock-like handling and stability

• HD transmission crossmember and 15° transfer case indexing ring correct driveline angles and retain factory driveshaft use

• Includes NX2 Nitro gas shocks (upgradeable to FOX 2.0 IFP shocks)

• Clears up to 37” tires with proper wheel specs

Elevated Performance with Heavy-Duty 4-Link Control

Take your 2019–2024 RAM 3500 4WD diesel with rear overload leaf springs to new levels of capability and comfort with the BDS 1693H 6” 4-Link Lift Kit. The factory radius arms are replaced with a true 4-link system that enhances axle control, reduces caster change, and dramatically improves on-road handling and off-road articulation.

Engineered for Strength, Comfort & Compatibility

This BDS system includes ¼-inch steel 4-link brackets and heavy-duty upper and lower control arms, paired with Pro-Ride coil springs tuned for diesel performance. At 6" of lift, BDS addresses front driveline geometry with a transfer case indexing ring and reinforced transmission crossmember, maintaining OEM driveshaft usability.

Rear Lift & Matched Ride Quality

The rear lift setup features 5" fabricated steel blocks, extended U-bolts, and NX2 Nitro shocks to match front performance. This design maintains rake under load and complements the system’s increased suspension travel and strength.

Fitment

2019, 2020, 2021, 2022, 2023, 2024 RAM 3500 4WD Diesel

• For models with rear overload leaf springs

• Requires 8-bolt transfer case

Fitment Notes

• Not compatible with:

  • Rear air-ride suspension

  • Power Wagon models

• Additional requirements:

  • Manual transfer case requires BDS122423 (shifter extension)

  • 2-piece rear driveshaft requires BDS122406 (carrier bearing drop kit)

Recommended Wheel & Tire Fitment

• 37 x 12.50 tires

• 17 x 9 wheels with 5.625” backspacing
  (Trimming may be required depending on tire and offset combination)
