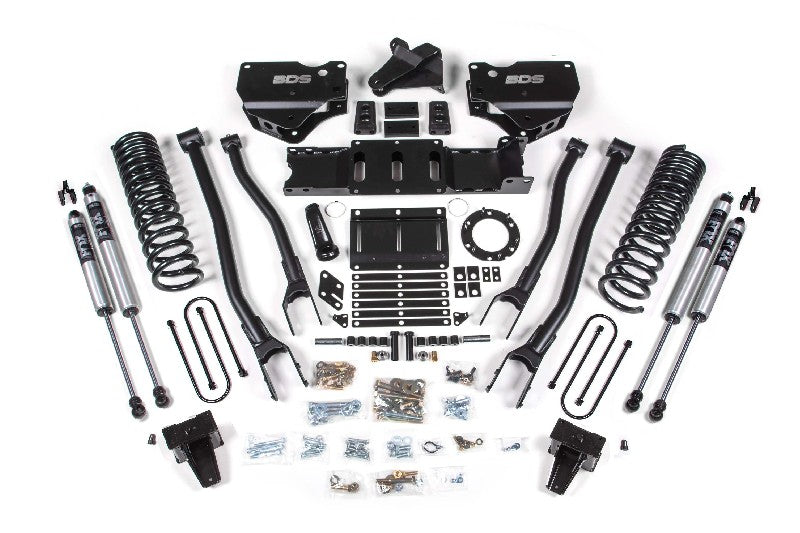

BDS 1691FS 6 inch 4-Link Lift Kit with FOX 2.0 Shocks - 6 Bolt | 2019-2024 RAM 3500 with Rear Overload Leaf

Features

• Heavy-duty 4-link system improves suspension strength, handling, and caster control

• Diesel-specific progressive-rate Pro-Ride coil springs for smooth ride quality across all terrains

• Front track bar relocation bracket re-centers axle for precise alignment

• Forged drop pitman arm corrects steering angles for optimal control

• Front sway bar relocation brackets maintain factory-like handling

• HD transmission crossmember and transfer case indexing ring correct driveline angles and retain factory driveshaft use

• Includes BDS NX2 gas shocks or optional FOX 2.0 Performance Series IFP shocks, delivering superior on- and off-road ride and performance

Overview

Raise the performance and stance of your RAM 3500 diesel with this 6-inch 4-link lift kit from BDS Suspension. Designed for trucks with rear overload leaf springs and 6-bolt transfer cases, this kit provides clearance for 37" tires while enhancing ride comfort, suspension geometry, and durability.

The 4-link conversion replaces factory stamped radius arms with high-strength tubular arms and heavy-duty brackets to improve axle control and reduce caster changes during wheel travel. Tuned Pro-Ride coil springs ensure predictable ride quality.

Steering & Driveline

The kit includes a forged drop pitman arm and track bar relocation bracket for accurate steering geometry and axle centering. The heavy-duty transmission crossmember and transfer case indexing ring adjust driveline angles to prevent vibration and allow continued use of the factory driveshaft.

Rear Lift

Includes heavy-duty steel lift blocks and longer u-bolts matched with NX2 Nitro or FOX 2.0 shocks for a balanced and controlled rear ride.

Fitment

• 2019, 2020, 2021, 2022, 2023, 2024 RAM 3500 4WD Diesel

• Rear overload leaf spring equipped

• 6-bolt transfer case required

Recommended Wheel & Tire Fitment

• 37 x 12.5 tires

• 17 x 9 wheels with 5.625 in. backspacing
