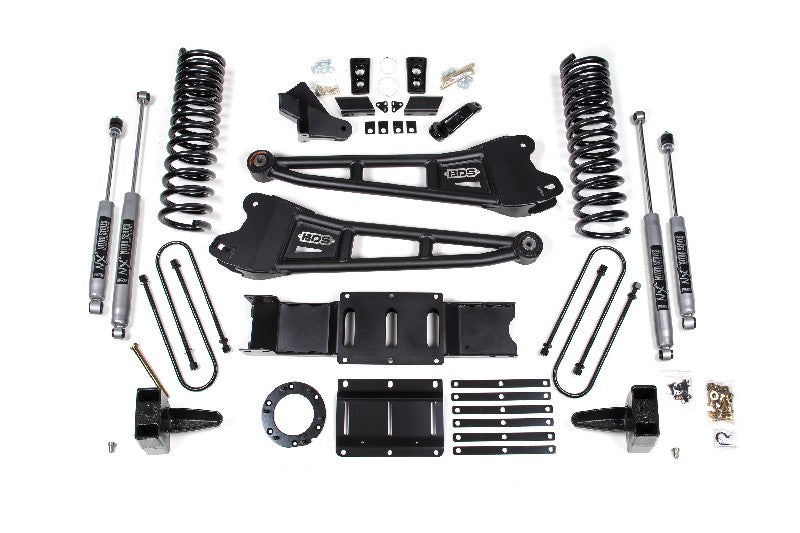

BDS 1686H 5.5 inch Radius Arm Lift Kit with NX2 Nitro Shocks | 2019-2024 RAM 3500 4WD 6.4L HEMI w/o Rear Overload Leaf

Features

• Provides 5.5" front lift using gas-specific progressive-rate Pro-Ride coil springs

• Heavy-duty tubular radius arms improve front-end stability, caster control, and overall strength

• Forged drop pitman arm and track bar relocation bracket correct steering angles and recenter the axle

• Front sway bar relocation brackets retain factory handling and road feel

• HD transmission crossmember and 15° transfer case indexing ring maintain correct driveline geometry

• Includes BDS NX2 Nitro gas shocks (front & rear) or upgradeable to FOX 2.0 IFP shocks

• Clears up to 37" tires with proper wheel specifications

Built for Serious Stance, Handling, and Off-Road Readiness

The BDS 1686H 5.5" Radius Arm Lift Kit delivers enhanced ride quality, improved geometry, and the rugged strength required to handle off-road and towing demands. Built specifically for 2019–2024 RAM 3500 gas-powered trucks without rear overload leaves, this system provides a comprehensive suspension overhaul that retains OE drivability while boosting your truck's stance and capability.

Heavy-Duty Radius Arms and Tuned Coil Springs

BDS replaces the weak factory stamped radius arms with high-strength tubular arms, engineered with OE-style rubber bushings for quiet operation and built-in caster adjustability. Paired with gas-specific Pro-Ride coil springs, the front end remains composed on-road while offering improved articulation off-road.

Correct Geometry for Optimal Performance

At 5.5" of lift, steering and driveline correction are crucial. This kit addresses both with a forged drop pitman arm, HD track bar bracket, and transfer case indexing ring, ensuring the factory front driveshaft operates smoothly. The included HD crossmember strengthens the transmission mounting point and supports proper alignment.

Rear Suspension Setup

A fabricated lift block, extended U-bolts, and a matched set of NX2 Nitro shocks raise the rear to level with the front. You can also upgrade to FOX 2.0 shocks for greater fade resistance and on/off-road comfort.

Fitment

2019, 2020, 2021, 2022, 2023, 2024 RAM 3500 4WD 6.4L HEMI

• Without rear overload leaf springs

• 6-bolt transfer case required

Fitment Notes

• Not compatible with:

  • Diesel engines

  • Rear overload spring models

  • Rear air-ride suspension

  • Power Wagon models

• Trucks with:

  • Manual transfer case require BDS122423

  • 2-piece rear driveshaft require BDS122406

Recommended Wheel & Tire Fitment

• 37 x 12.50 tires

• 20 x 9 wheels with 5.625” backspacing
  (Trimming may be necessary depending on wheel/tire combination)
