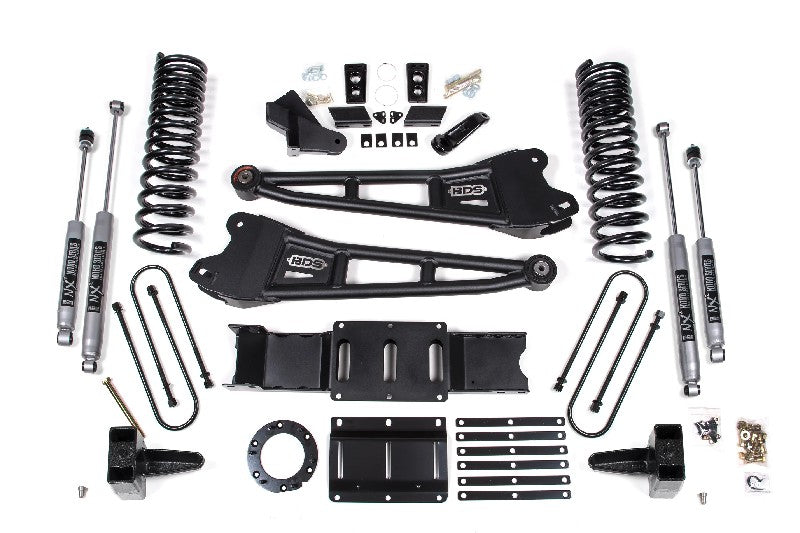

BDS 1682H 6 inch Radius Arm Lift Kit with NX2 Nitro Shocks - 6 Bolt | 2019-2024 RAM 3500 4WD w/o Rear Overload Leaf

Features

• Heavy-duty tubular radius arms improve strength, handling, and caster control

• Front progressive-rate Pro-Ride coil springs tuned for diesel applications

• Forged drop pitman arm corrects steering geometry

• Front track bar relocation bracket repositions the axle for proper alignment

• Front sway bar relocation brackets maintain factory-like handling

• HD transmission crossmember and transfer case indexing ring correct front driveline angles

• Includes precision-tuned BDS NX2 Nitro gas shocks or optional FOX 2.0 Performance Series IFP shocks

• Compatible with factory driveshafts

• All components designed for maximum durability and on/off-road performance

Performance Overview

Take your RAM 3500 to new heights with the BDS 1682H 6” Radius Arm Lift Kit, designed to elevate both appearance and capability. This comprehensive system supports up to 37” tires and delivers increased articulation, improved ride comfort, and rugged durability for serious off-road use.

The included diesel-specific Pro-Ride coil springs provide a smooth, predictable ride while maintaining proper suspension geometry. HD radius arms replace the weak factory stamped units with beefy tubular construction, adjustable caster cams, and service-free OE-style bushings.

Steering & Driveline Correction

To ensure optimal steering feel and factory-like alignment:

• The forged drop pitman arm reduces steering linkage angles.

• A track bar drop bracket maintains geometry and re-centers the axle through the full range of motion.

• The transfer case indexing ring and HD crossmember correct the front driveline angle, critical for 6" lifts, while retaining use of factory driveshafts.

Rear Suspension

In the rear, the kit includes:

• High-strength steel lift blocks

• Extended u-bolts

• Precision-matched NX2 Nitro or FOX 2.0 shocks
  This setup provides a level ride and full suspension functionality without affecting payload capability.

Fitment

2019, 2020, 2021, 2022, 2023, 2024 RAM 3500 6.7L Cummins 4WD
Excludes models with factory rear overload leaf springs

Recommended Tire & Wheel Fitment

• 37 x 12.5 tires on 17 x 9 wheels with 5.625 in. backspacing

Note: Minor trimming may be required depending on tire brand and offset.
