BDS 1653FS 3 inch Radius Arm Lift Kit with FOX 2.0 Shocks | 2019-2024 RAM 2500 6.7L Cummins 4WD

Lift Kit Features:

• Heavy duty radius arm drop brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for off-road terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Maintains and handles performance
• Fox Performance series IFP gas shocks to improved ride and off-road performance

Fox 2.0 Shocks Features:

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Enhance Towing Performance With This Air Ride Lift Kit

Level out and take your RAM 2500 diesel powered truck with this 3-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, sway bar links, brake line brackets and precision tuned FOX 2.0 nitrogen charged shocks.

Handles Multiple Terrain Types With Front and Rear Lift

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation. A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Important Notes: If you experience front driveline vibration, a T-case indexing ring is available for 6-bolt and 8-bolt equipped models. Be sure to select the correct one for your application.

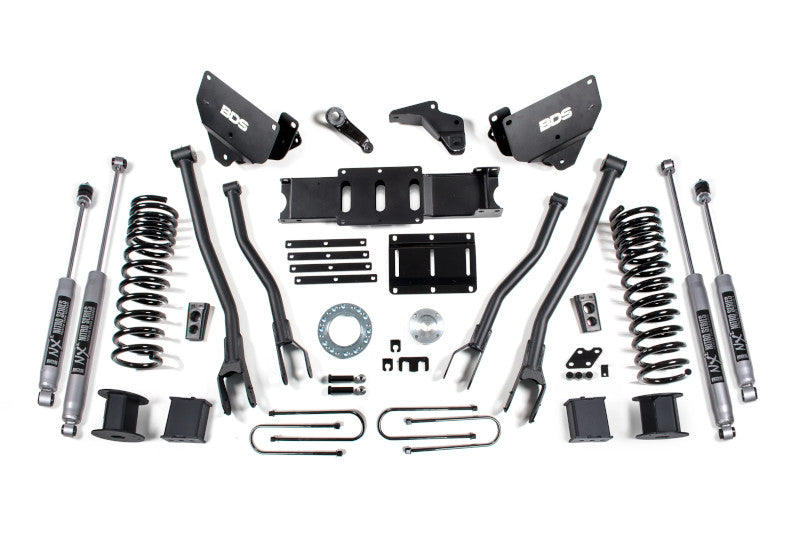

Kit Components:

• 1x - 2014-2024 Ram 2500 / 2013-2024 Ram 3500 3" Front Box Kit (012312)
• 1x - 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3" Diesel - 4" Gas (032302)
• 1x - 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit (122321)
• 1x - 2014-2024 Ram 2500 1.25" Rear Spacer Box Kit (012128)
• 2x - Fox 2.0 Shock 23.27 x 14.65 x 2- S50/EB1 (FOX98224710)
• 2x - Fox 2.0 Shock - 23.65 x 15.05 x 2- Special/EB1 (FOX98224706)

Specs:

Front Lift: Coil Spring

Rear Lift: Coil Spacers

Shocks Included: Yes

Front Lift Height: 3"

Rear Lift Height: 1.25"

Wheel and Tire Note:

• 35 x 12.5 with 17 x 9 and 5 in. Backspace
• 35 x 12.5 with 18 x 9 and 5 in. Backspace
• 35 x 12.5 with 20 x 9 and 5 in. Backspace

Vehicle Fitment: 2019-2024 Dodge Ram 2500 4WD Diesel

Year Ranges	Make	Model	Series	Engine
2019-2024	RAM		2500	6.7L Cummins

Property	Values
Year Ranges	2019-2024
Make	RAM
Model
Series	2500
Engine	6.7L Cummins
