6" inch 4-Link Lift Kit with NX2 Nitro Shocks - 8 Bolt

Lift Kit Features:

• Heavy duty 4-link improve strength, handling and caster control
• Front high strength progressive rate coil springs for off-road terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Maintains and handles performance
• NX2 Nitro gas shocks to improved ride and off-road performance

NX2 Nitro Shocks Features:

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Enhance Towing Performance With This Air Ride Lift Kit

Built to outperform, BDS Suspension engineered a 6-inch lift kit with 4-Link conversion for your 2013-2018 RAM 3500 diesel powered truck that will surely impress. Works only on trucks equipped with factory rear air ride. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 nitro shocks.

Improve Drive-Quality and Steering

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel. To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Fitment: 2013, 2014, 2015, 2016, 2017, 2018 Dodge Ram 3500 4WD Diesel

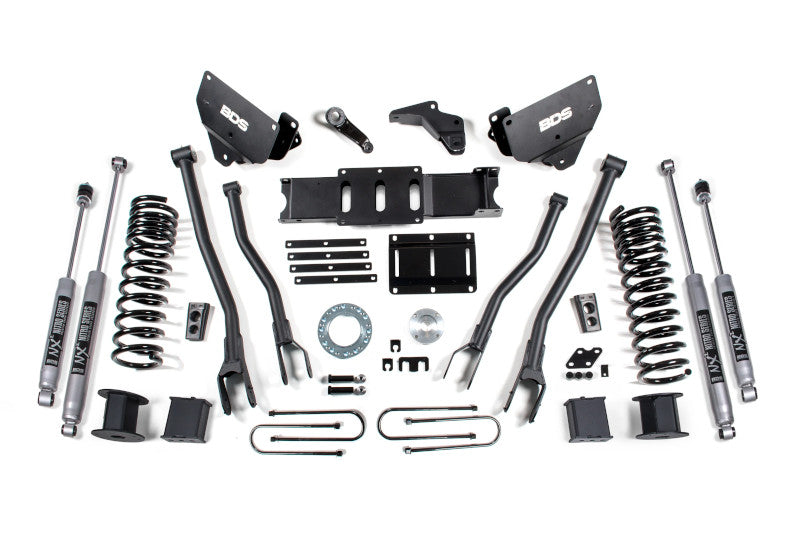

Kit Components:

• 1x - Ram 3500 Auto Level Air Suspension 6" Rear (012618)
• 1x - 2013-2018 Ram 3500 4-Link Box Kit (012403)
• 1x - 2013-2018 Ram 3500 6" 4-Link Box Kit (012604)
• 1x - 2013-2024 Ram 3500 / 2014-2024 Ram 2500 6" Coils - Diesel (032602)
• 1x - 13 3500/14 2500 Ram T-Case Index- 8 Bolt(122813)
• 2x - Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2 (85752)
• 2x - Shock- 30.95 x 18.15 x 2-3/8 - EB1/EB1 (85769)

Specs:

• Front Lift: Coil Spacers
• Rear Lift: Coil Spacers
• Shocks Included: Yes
• Front Lift Height: 6"
• Rear Lift Height: 6"

Wheel and Tire Note:

• 37 x 12.5 with 17 x 9 and 4.5 in. Backspace
• 37 x 12.5 with 17 x 9 and 5.625 in. Backspace
• 37 x 12.5 with 20 x 9 and 5.625 in. Backspace

8 Bolt Indexing Ring Note:

• Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt).
• The 8-bolt kit also includes an internal shaft seal extension and new shaft seal.

Important Notes: The carrier bearing drop is necessary for models equipped with two piece rear drive shaft.

Important Notes: Some vehicles may require rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement

Important Notes:DRW models fit inner wheel clearance to the upper u-bolt plate on 6" kits

Important Notes: Fits OE equipped air ride systems only
