BDS 1649FS 6 inch Lift Kit with FOX 2.0 Shocks - 8 Bolt | 2013-2018 RAM 3500 6.7L Cummins 4WD Air Ride

Lift Kit Features:

• Heavy duty radius arm drop brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for off-road terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Maintains and handles performance
• FOX performance series IFP gas shocks to improved ride and off-road performance

Fox 2.0 Shocks Features:

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Enhance Towing Performance With This Air Ride Lift Kit

Improve the ride and style of your 2013-2018 RAM 3500 diesel powered truck, equipped with rear air ride from the factory, with this 6-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. Up front the lift kit includes diesel-specific Pro-Ride coil springs, radius arms drop brackets, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned FOX 2.0 nitrogen charged shocks.

Improve Drive-Quality and Steering

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle. In the rear this kit utilizes a high-strength fabricated lift block, heavy duty air bag spacers, longer u-bolts and a matching set of FOX 2.0 Performance shocks.

Important Notes: The carrier bearing drop is necessary for models equipped with two piece rear drive shaft.

Important Notes: Some vehicles may require rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement

Important Notes:DRW models fit inner wheel clearance to the upper u-bolt plate on 6" kits

Important Notes: Fits OE equipped air ride systems only

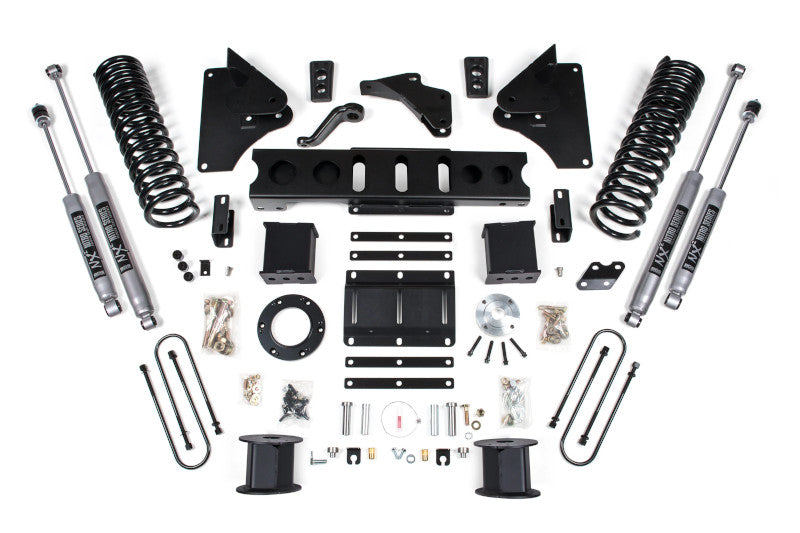

Kit Components:

• 1x - Ram 3500 Auto Level Air Suspension 6" Rear (012618)
• 1x - 2013 Ram 3500 6" Front Box Kit (012610)
• 1x - 2013-2023 Ram 3500 / 2014-2023 Ram 2500 6" Coils - Diesel (032602)
• 1x - 2013-2018 3500/2014-2018 2500 Ram T-Case Index- 6 Bolt (122623)
• 2x - Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1 (FOX98224752)
• 2x - Fox 2.0 Shock 31.02 x 18.95 x 2- EB1/EB1 (FOX98224769)
• Kits come standard with 6-Bolt indexing ring kit

Specs:

Front Lift: Coil Spacers

Rear Lift: Coil Spacers

Shocks Included: Yes

Front Lift Height: 6"

Rear Lift Height: 6"

Wheel and Tire Note:

• 37 x 12.5 with 17 x 9 and 4.5 in. Backspace
• 37 x 12.5 with 17 x 9 and 5.625 in. Backspace
• 37 x 12.5 with 20 x 9 and 5.625 in. Backspace

Vehicle Fitment: 2013-2018 Dodge Ram 3500 4WD Diesel

Year Ranges	Make	Model	Series	Engine
2013-2018	RAM		3500	6.7L Cummins

Property	Values
Year Ranges	2013-2018
Make	RAM
Model
Series	3500
Engine	6.7L Cummins
