4 inch Lift Kit with NX2 Nitro Shocks

Lift Kit Features:

• Heavy duty radius arm drop brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for off-road terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Maintains and handles performance
• BDS NX2 gas shocks to improved ride and off-road performance

NX2 Nitro Shocks Features:

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Enhance Towing Performance With This Air Ride Lift Kit

Improve the ride and style of your factory rear air ride equipped 2013-2018 RAM 3500 gas powered truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. Up front the lift kit includes gas-specific Pro-Ride coil springs, radius arms drop brackets, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

Improve Drive-Quality and Steering

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle. In the rear this kit utilizes a high-strength fabricated lift block, heavy duty air bag spacer, longer u-bolts and a matching set of FOX 2.0 Performance shocks.

Important Notes: 6.4L gas models will require exhaust modification to clear the front driveshaft. 5.7L gas models may require exhaust modification as well. The vehicle can be driven without the front driveshaft to an exhaust shop for modifications to be made before reinstalling the driveshaft.

Important Notes: The carrier bearing drop is necessary for models equipped with two piece rear drive shaft.

Important Notes:Some vehicles may require rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement.

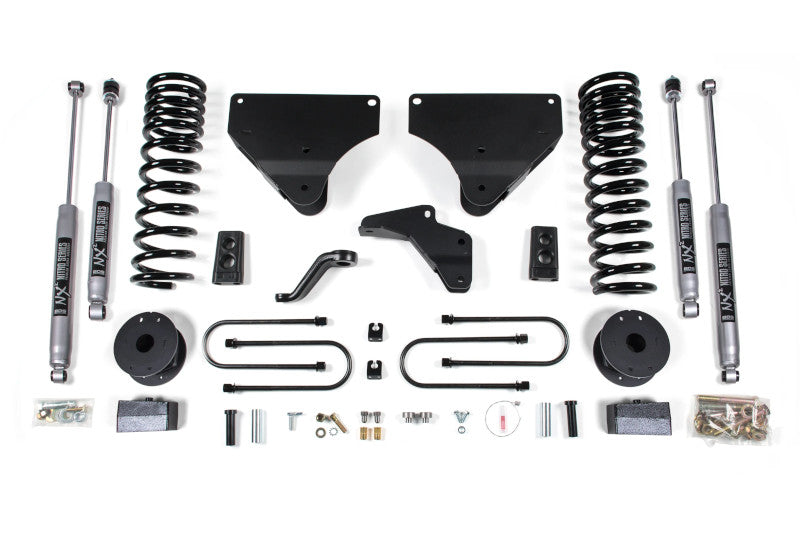

Kit Components:

• 1x - Ram 3500 Auto Level Air Suspension 3" Rear (012318)
• 1x - 2013-18 Ram 2500/300 4" Front Box Kit (012401)
• 1x - 2013-2023 Ram 3500 / 2014-2023 2500 Ram Coils 3" Diesel - 4" Gas (032302)
• 2x - Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2 (85700)
• 2x - Shock- 27.90 x 16.55 x 2-3/8 - EB1/EB1 (85758)

Specs:

• Front Lift: Coil Spring
• Rear Lift: Coil Spacers
• Shocks Included: Yes
• Front Lift Height: 4"
• Rear Lift Height: 3"

Wheel and Tire Note:

• 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
• 37 x 12.5 with 17 x 9 and 5.625 in. Backspace
• 37 x 12.5 with 20 x 9 and 5.625 in. Backspace

Vehicle Fitment: 2013-2018 Dodge Ram 3500 4WD Gas
