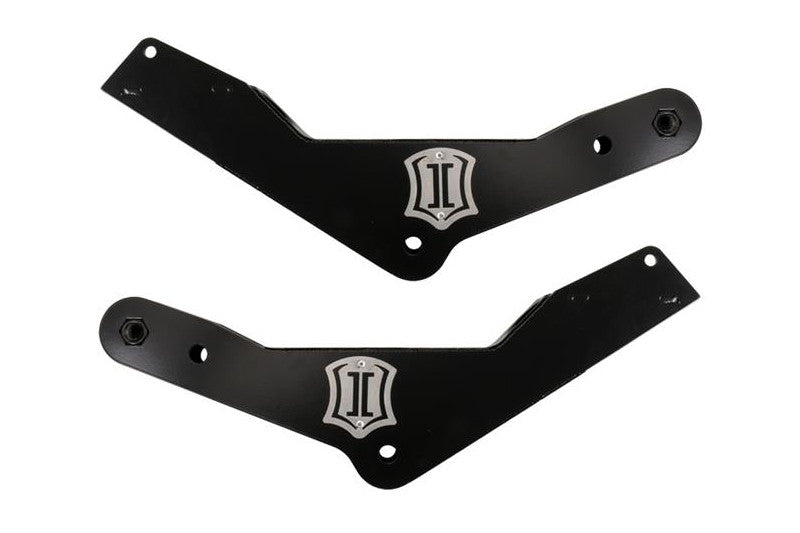

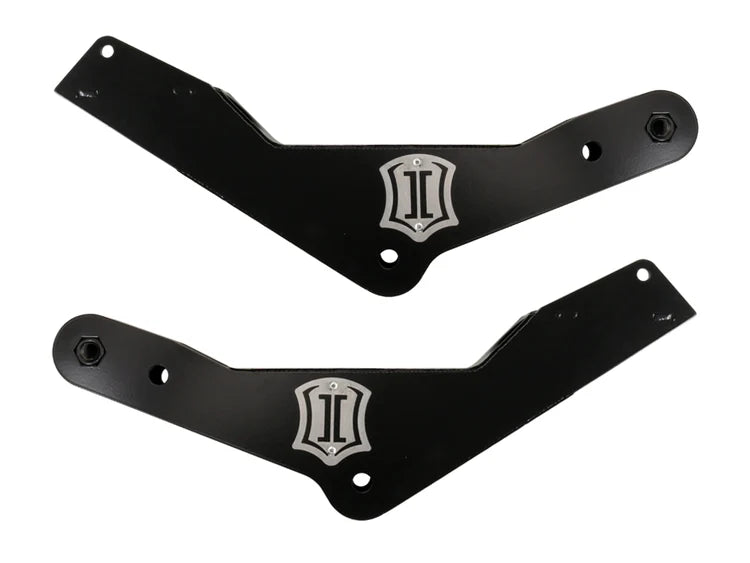

4-Link Frame Bracket Kit - (Pair)

Features:

• Compatible with 2.5 to 7 inch lifts
• Designed for 2011-2016 Super Duty 4WD

• Essential for ICON 4-Link conversions
• Improves front suspension articulation
• Helps maintain consistent caster angles
• Supports improved handling and drivability
• CNC laser cut steel construction
• Brake formed for added strength
• 100 percent bolt on installation
• No cutting or welding required
• Corrosion resistant powder coat finish

• Backed by ICON Limited Lifetime Warranty

Turn Your Factory Front End Into Something More Capable

Getting more useful movement from your Super Duty starts with giving the front suspension a better foundation. The ICON 164503 4 Link Frame Bracket Kit provides that foundation for 2011-2016 Ford F250 and F350 Super Duty 4WD trucks equipped with 2.5 to 7 inches of front lift. These brackets allow the factory radius arm arrangement to be converted as part of ICON's complete 4 Link system, helping improve articulation and overall drivability. With the complete system installed, reduced bushing bind allows the suspension to move more naturally while consistent caster angles help keep handling predictable throughout the travel range. That combination can make a noticeable difference when the truck encounters uneven terrain or simply needs better control from its modified suspension. Installation is also straightforward because the brackets bolt into place without requiring cutting or welding, saving you from unnecessary permanent fabrication. Finished in corrosion resistant semi gloss black powder coat, this bracket kit gives your 4 Link conversion a strong and purpose built mounting point for the road and trail ahead.

Heavy Duty Brackets Built For A Proper Conversion

The ICON 164503 Frame Bracket Kit is engineered specifically for the ICON 4 Link Conversion System used on 2011-2016 Ford F250 and F350 Super Duty 4WD trucks. Each bracket is fabricated from CNC laser cut steel plate, which provides precise dimensions and the structural strength needed to locate the suspension links securely. The steel is brake formed during manufacturing to create the finished bracket geometry while adding rigidity to the assembly. Once installed with the complete ICON system, the 4 Link configuration helps maintain consistent caster angles as the front suspension moves through its travel. The brackets use a fully bolt on design, so installation requires no cutting or welding to the truck. They are compatible with 2.5 to 7 inches of front lift and require ICON 164501 upper links and ICON 164502 lower links to complete the conversion. A semi gloss black powder coat provides corrosion resistance, while ICON's Limited Lifetime Warranty backs the fabricated components.

Fitment:  2011, 2012, 2013, 2014, 2015, 2016 Ford F250/F350 Super Duty 4WD w/ 2.5-7" Front Lift

Notes:

• Fits 2011-2016 Ford Super Duty 4WD models only.
• Compatible with 2.5" to 7" of front lift.
• Requires ICON 164501 upper links for installation.
• Requires ICON 164502 lower links for installation.
• Not a complete 4-link conversion by itself.
• Designed specifically for ICON 4-link systems.
• Upper and lower links are sold separately.
• No cutting or welding is required.
• Verify model year and drivetrain before ordering.
• California residents should review Proposition 65 warnings.
• (2) ICON  4-Link Frame Brackets.
• Product images may be representative.
