- Heavy duty 4-link arms improve strength, handling and caster control
- High strength progressive rate coil springs for a great ride on any terrain
- Track bar relocation brackets to re-position axle
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
- BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
Pro-Ride Coil Springs
Go big with the BDS Suspension engineered 8-inch lift kit with 4-Link conversion for your 2014-2018 RAM 2500 diesel powered truck. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 40" tires. Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks. At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied.
4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel. A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
Shock Option
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Recommended Tires & Wheels
- 40 x 13.5 with 17 x 9 and 4.5 in. Backspace
- 40 x 13.5 with 20 x 9 and 5.5 in. Backspace
Important Notes
- Carrier bearing drop kit will be required for 2-piece rear drive shaft
- Some vehicles may require a rear driveshaft spacer kit to maintain adequate rear driveshaft engagement
- 40x13.50 tires may require some trimming, and depending on wheel width and backspacing may require spacing the front bumper forward and inner fender trimming.
Fitment:
2014, 2015, 2016, 2017, 2018 Dodge Ram 2500 4WD Diesel

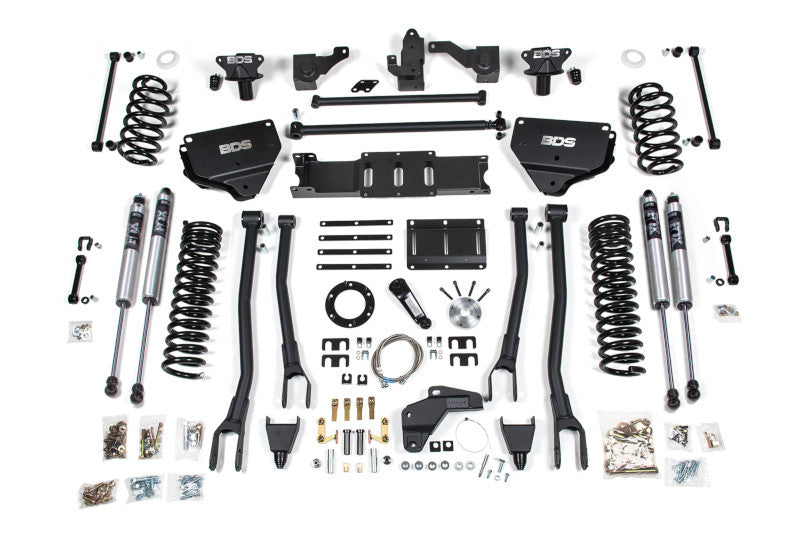

Kit Includes
- 2013-2018 Ram 3500 4-Link Box Kit (2of2) (012403)
- 2014-16 Ram 2500 Rear Box Kit (012619)
- 2013-18 Ram 3500 8in Front Box Kit (012810)
- 2014-2024 Ram 2500 Rear 6" Coil Box Kit (032619)
- 2013-2024 Ram 3500 8in Front Coil-Dsl (Single Coil Only) (032802)
- 2013-2018 3500/2014-2018 2500 Ram T-Case Index- 6 Bolt (122623)
- Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1 (FOX98224754 x2)
- Fox 2.0 Shock - 30.05 x 18.5 x 2- Special/EB1 (FOX98224763 x2)
