BDS 1577FPE 4 inch 4-Link Lift Kit with FOX 2.5 Coilover Conversion | 2017-2019 F350 DRW 6.7L Powerstroke 4WD

Lift Kit Features:

• Adds max performance
• Provides smooth drive quality over rough terrain
• Heavy-duty tubular steel radius arms that maximizes ground clearance
• Levels out stance
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

Improve Your Off-Road Drive-Quality and Performance

Maximize the capability of your 2017-2019 Ford F350 Dually "DRW" Super Duty diesel powered truck with this 4-inch lift kit with 4-Link and FOX 2.5 Performance Elite Coil-over conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your dually truck up right with clearance for up to 37" tires. Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, 4-link control arms with conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets.

Feel The Power After Installing These Heavy-Duty Components

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

Tire & Wheel Note:

• 37 x 12.5 with 17 x 9 and 5 in. Backspace
• 37 x 12.5 with 18 x 9 and 5 in. Backspace
• 37 x 12.5 with 20 x 9 and 5 in. Backspace

Specs:

• Front Lift: Coilover
• Rear Lift: Block
• Shocks Included: Yes
• Front Lift Height: 4"
• Rear Lift Height: 3"

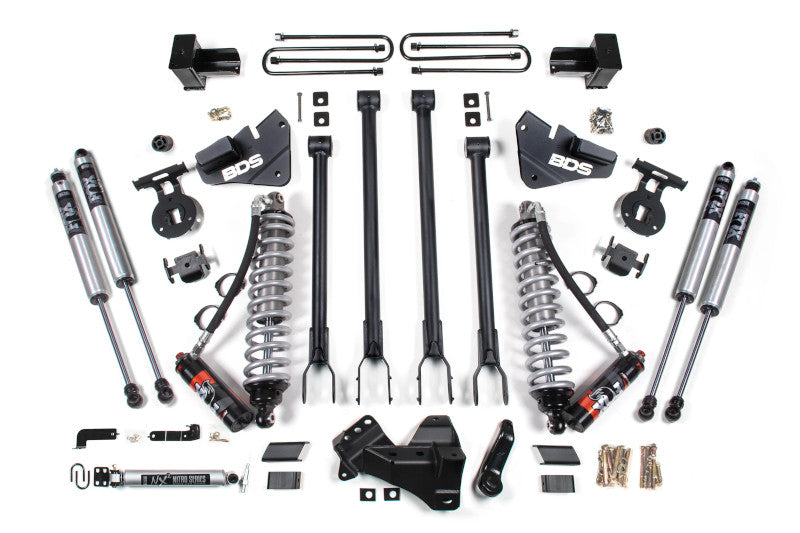

Kit Components:

• 1x - 2017-2019 Super Duty 4" 4-Link Box Kit (013422)
• 1x - 2017-2020 F350 Dually 5" Block Kit (013526)
• 1x - 2017-2022 Super Duty 4-Link Box Kit (013601)
• 1x - 2017-2022 Super Duty Coil-over Mount Kit (123613)
• 1x - Kit: BDS 05-On Ford SD Front Coilover, 2.5 Truck PES, R/R 4" Lift, DSC (FOX88406427)
• 2x - Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1 (FOX98224700)
• 2x - Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1 (FOX98224718)

Note: If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)

Note: Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.

Note: If your truck is equipped with a factory rear sway bar add: 123005

Note: 37 x 12.50 tires may require minor trimming.

Vehicle Fitment: 2017-2019 Ford F350 Super Duty 4WD Diesel

Year Ranges	Make	Model	Series	Engine
2017-2019	Ford	Super Duty	F350	6.7L Powerstroke

Property	Values
Year Ranges	2017-2019
Make	Ford
Model	Super Duty
Series	F350
Engine	6.7L Powerstroke
