4 inch Radius Arm Lift Kit with FOX 2.5 Coilover Conversion

Lift Kit Features:

• Fox 2.5 coilover mounts in factory coil bucket location
• Provides smooth drive quality over rough terrain
• Heavy-duty tubular steel radius arms that maximizes ground clearance
• Levels out stance
• Corrosion resistant
• Improves handling

Enhance Your Off-Road Performance With Heavy-Duty Components

Built to outperform, upgrade your dual rear wheel "DRW" 2017-2019 Ford F350 Super Duty diesel powered truck with this 4-inch radius arm lift kit and FOX 2.5 Performance Elite Coil-over conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your dually Ford truck up right with clearance for up to 37" tires. Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, heavy duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and secondary FOX 2.0 shocks.

Improves Handling Through Rough Off-Road Terrain

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

Fitment: 2017, 2018, 2019 Ford F350 Super Duty 4WD Diesel

Tire & Wheel Note:

• 37 x 12.5 with 17 x 9 and 5 in. Backspace
• 37 x 12.5 with 18 x 9 and 5 in. Backspace
• 37 x 12.5 with 20 x 9 and 5 in. Backspace

Specs:

• Front Lift: Coilover
• Rear Lift: Block
• Shocks Included: Yes
• Front Lift Height: 4"
• Rear Lift Height: 3"

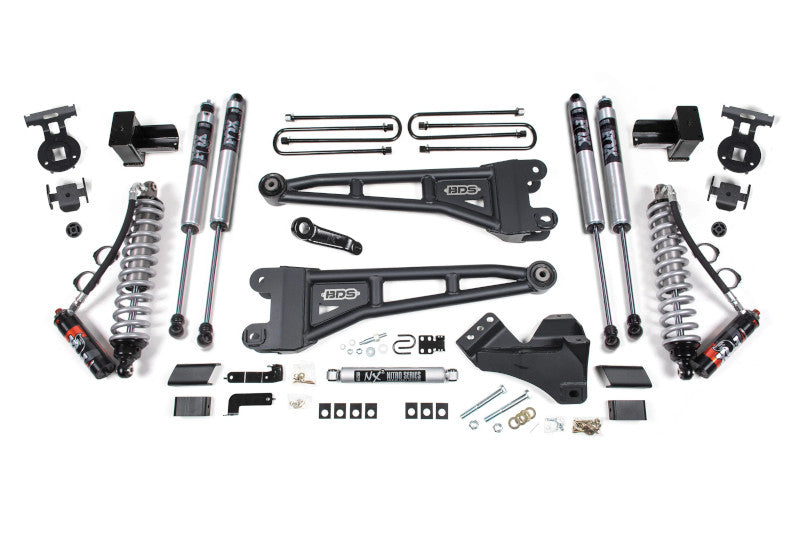

Kit Components:

• 1x - 2017-2023 Super Duty 4" Front Box Kit (013414)
• 1x - 2017-2020 F350 Dually 5" Block Kit (013526)
• 1x - 2005-2022 Ford F350 Radius Arm Kit, Pair (123251)
• 1x - 2017-2022 Super Duty Coil-over Mount Kit (123613)
• 1x - 2017-2023 F250/F350 Single Stabilizer (85431)
• 1x - Kit: BDS 05-On Ford SD Front Coilover, 2.5 Truck PES, R/R 4" Lift, DSC (FOX88406427)
• 2x - Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1 (FOX98224700)
• 2x - Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1 (FOX98224718)

Note: Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups

Note: Installation requires a torque wrench capable of 405 ft-lbs
