BDS 1573FS 6 inch Radius Arm Lift Kit with FOX 2.0 Shocks | 2020-2022 Ford F350 Super Duty 4WD/DRW 6.7L Powerstroke

Features:

• Easy, 100% Bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Improves handling, stability and strength
• Maximizes ground clearance
• Levels out stance
• Maintain proper steering angles for improved handling
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Fox 2.0 Shocks Features:

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Add Larger Tires To Improve Rig's Off-Road Performance

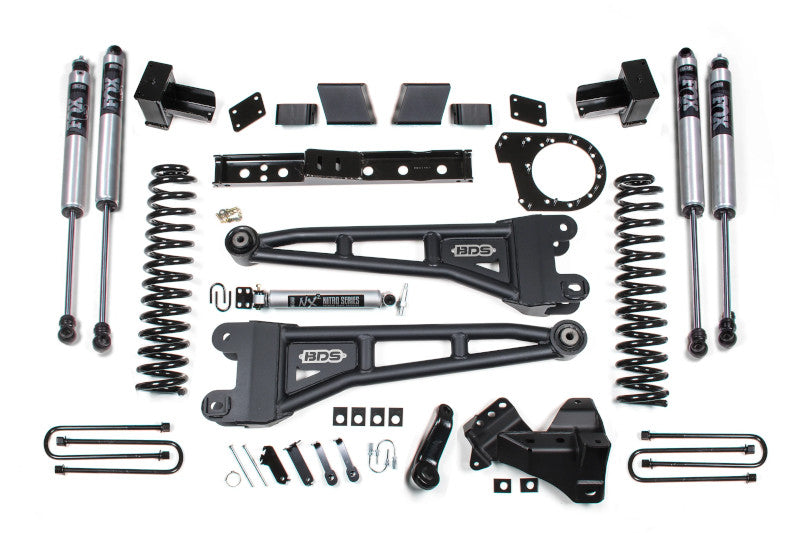

Take your Ford F350 Dually "DRW" Super Duty diesel truck to the next level with this 6-inch radius arm lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38" tires. Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks.

Improves Handling Through Rough Off-Road Terrain

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation. At this height, driveline adjustments are necessary to allow the use of the factory driveshafts so a precision-built transfer-case indexing ring featuring ARP-studs can clock the transfer case and improve the front driveline operating angle. Additionally, a high clearance transmission crossmember supplied to allow sufficient clearance.

Tire & Wheel Note:

• 38 x 13.5 with 20 x 9 and 5 in. Backspace
• 38 x 13.5 with 20 x 10 and 5 in. Backspace

Vehicle Fitment: 2020, 2021, 2022 Ford F350 Super Duty 4WD/DRW 6.7L Powerstroke

Notes:

• Only fits 2020-2022 F350 DRW Diesel models
• Not compatible with Tremor or gas models
• Carrier Bearing Drop Kit may be needed
• Manual transfer case models require modification
• Transfer case indexing ring won’t fit 6.2L w/ 6R100
• 38" tires may need minor trimming
• Rear lift achieved with 5" block kit
• Levels front and rear stance for better profile
• Includes transfer case indexing ring and crossmember
• Caster-adjustable radius arms improve alignment
• OE-style bushings reduce noise and maintenance
• High-strength tubular arms replace factory stamped steel
• Fox 2.0 shocks provide excellent off-road damping
• Requires sway bar relocation and brake line brackets
• Designed for up to 38 x 13.5 tires on 20" wheels
• Backed by BDS’s No Fine Print Lifetime Warranty
