SKU: BDS1524FPE

4 inch FOX 2.5 Conversion Lift Kit with Radius Arms & 5 inch Block Kit with 3 Leaf Main

Ships From Manufacturer in 1-3 Days
Confirmed fitment below
YEARS
2017-2019
MAKE / MODEL
Ford / Super Duty
SERIES
F250/F350
ENGINE
6.7L Powerstroke
$4,638.50
or
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Visa
Free Shipping
ORDERS $70+
Easy Returns
HASSLE-FREE
Earn Rewards
ALLIGATOR POINTS
Not sure this fits your build?
Our diesel experts know these trucks. Call or chat before you buy.
1-208-719-7400

PRODUCT DETAIL

Key Features & Description

Features:

  • FOX 2.5 Coil-Over mounts in factory coil bucket location
  • Adds additional secondary FOX 2.0 shock for max performance
  • Eibach coil springs ride smooth through the roughest terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear
  • FOX shocks are fully serviceable and resistant to corrosion and harsh environments

Built to outperform, upgrade your 2017-2019 Ford F250 and F350 Super Duty diesel powered truck with this 4-inch radius arm lift kit and FOX 2.5 Performance Elite Coil-over conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, heavy duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of FOX Performance shocks.

FOX Performance Elite Coil-Over

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Rear Lift Option

5 Inch Block

Some F250/350 factory options increase the main leaf pack count from 2 to 3 leaf's (this is for top overload options only). Be sure to verify which factory leaf spring configuration your vehicle has and choose the appropriate option.

Recommended Tires & Wheels

  • 37 x 12.5 with 17 x 9 and 5 in. Backspace
  • 37 x 12.5 with 18 x 9 and 5 in. Backspace
  • 37 x 12.5 with 20 x 9 and 5 in. Backspace

Fitment:

2017-2019 Ford F250/F350 Super Duty 4WD - Diesel with 3 Leaf Main

Important Notes

  1. If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
  2. 37 x 12.50 tires may require minor trimming.
  3. Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
  4. If your truck is equipped with a factory rear sway bar add: 123005

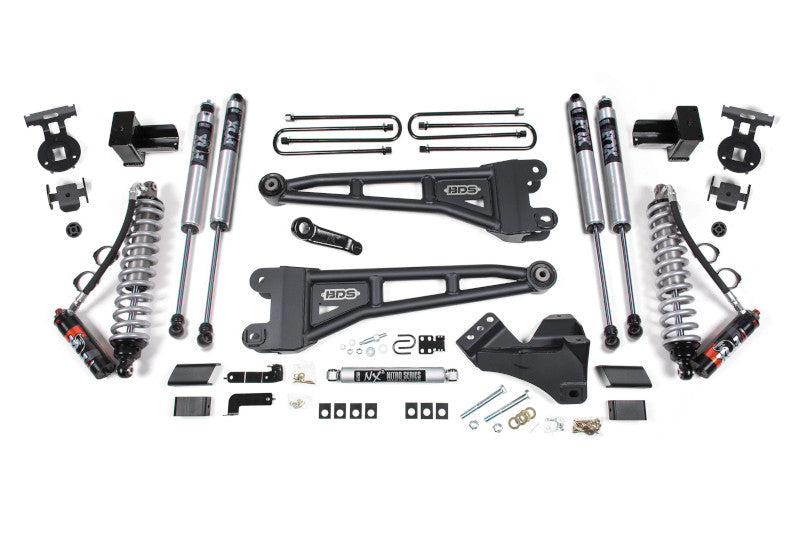

Kit Includes

  • 2017-2023 Super Duty 4" Front Box Kit (013414)
  • 2017 F250 5" Rear Block Kit -3 Leaf Main (013516)
  • 2005-2022 Ford F250/F350 Radius Arm Kit, Pair (123251)
  • 2017-2022 Super Duty Coil-over Mount Kit (123613)
  • 2017-2023 F250/F350 Single Stabilizer (85431)
  • Kit: BDS 05-On Ford SD Front Coilover, 2.5 Truck PES, R/R 4" Lift, DSC (FOX88406427)
  • Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1 (FOX98224700 x2)
  • Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1 (FOX98224718 x2)

FITMENT GUIDE

Exact Fitment — Verify Your Year

Year RangesYears
Make
Model
Series
Engine
2017-2019
Ford
Super Duty
F250/F350
6.7L Powerstroke
