SKU: BDS149FS

7 inch Lift Kit with FOX 2.0 Shocks - Carrier Above Crossmember

1 in stock and ready for shipping
Confirmed fitment below
YEARS
2001-2010
MAKE / MODEL
GM/Chevrolet/GMC / Silverado/Sierra
SERIES
2500HD
ENGINE
$2,588.55
or
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Visa
Free Shipping
ORDERS $70+
Easy Returns
HASSLE-FREE
Earn Rewards
ALLIGATOR POINTS
Not sure this fits your build?
Our diesel experts know these trucks. Call or chat before you buy.
1-208-719-7400

PRODUCT DETAIL

Key Features & Description

Features:

  • High Clearance design w/ no torsion bar drop maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • Factory Protection Plus drivetrain warranty included
  • Choice of NX2 or FOX 2.0 gas shocks for improved performance
Fox 2.0 Performance Series Features:
  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Improve Rig's Stance and Performance

Designed to improve stance, performance, and capability, the BDS 6-inch lift kit for the 2001-2010 Chevy Silverado and GMC Sierra 2500 HD 2WD is a must have upgrade. For maximum ground clearance, BDS designed a No Torsion Bar Drop System where the torsion bars are mounted directly to the top of the lower a-arm eliminating the need to drop the torsion bar cross-member. This kit includes everything necessary to set your truck up right with clearance for up to 35" tires. This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers along with heavy duty skid plates built for offroad protection.


Improves Steering and Drive Quality

Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity.



Fitment:
  • 2001-2010 Chevrolet Silverado 2500HD 2WD
  • 2001-2010 GMC Sierra 2500HD 2WD

Specs:

  • Front Lift Method : Cross-Member
  • Rear Lift Method : Block
  • Shocks Included : Yes
  • Front Lift Height : 7"
  • Rear Lift Height : 5"

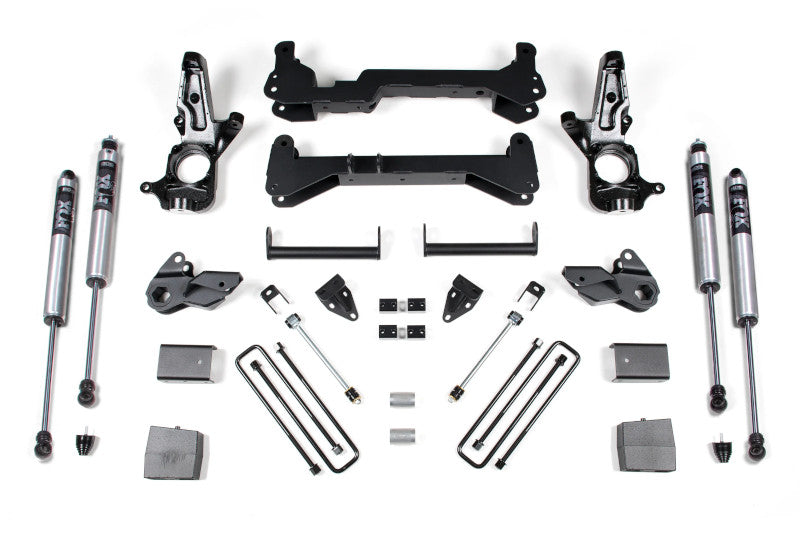

Kit Includes:
  • 1x - GM 3/4 ton HD 5in Rear Box Kit (011507)
  • 1x - 01-10 GM HD (021620)
  • 1x - Box Kit (021627)
  • 1x - Box Kit (021628)
  • 1x - Carrier Bearing Drop (121611)
  • 2x - Fox 2.0 Shock 21.95 x 13.85 x 2- S50/EB1 (FOX98224606)
  • 2x - Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1 (FOX98224761)

Recommended Tires and Wheels:

  • 35 x 12.5 with 16 x 8 and 4.5 in. Backspace
  • 35 x 12.5 with 17 x 9 and 5.5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5.75 in. Backspace

Note: Special tool required to unload/load the torsion bars.

Note: The 2WD HD was produced with two different styles of carrier bearing crossmembers. If the carrier bearing is mounted above the crossmember, use 121611. If the carrier bearing is mounted below the crossmember, use 121612.

FITMENT GUIDE

Exact Fitment — Verify Your Year

Year RangesYears
Make
Model
Series
Engine
2001-2010
GM/Chevrolet/GMC
Silverado/Sierra
2500HD
