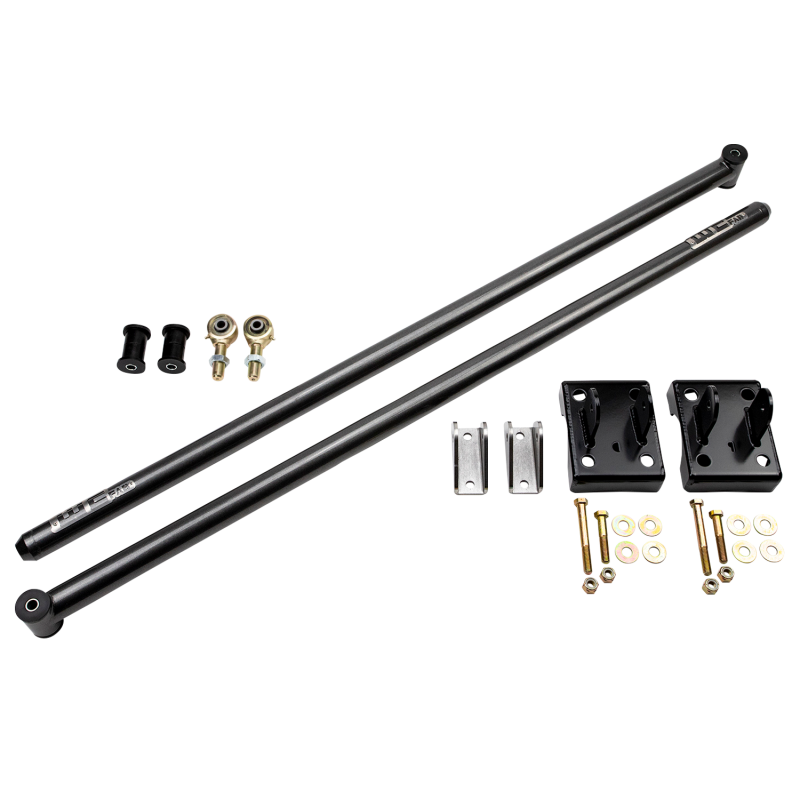

60" inch Traction Bar Kit

If you have a Regular Cab Long Bed truck, please measure forward 60 inches from the bottom of the rear axle and verify that you have a good spot on the frame to land the front mounting brackets. Some models have brackets for the fuel tank which interfere with 60 in. bar frame side mounting points and should run WCF100853 68 in. bars instead. A quick measurement and visual inspection before you order will help confirm which bar set is right for your truck. If you have Extended Cab Long Bed or Crew Cab Long Bed truck use part number WCF100853. If you have a Lift Kit and your U-Bolts face up instead of down like factory, use Traction Bar Kit WCF100855. If you have a Lift Kit and your REAR lift Block is taller than 5" or your total lift height is 6" or greater, use part number WCF100853. If your truck is on a big lift, please measure from your axle mounting point to your frame mounting point to ensure the bar length will work properly for your application before placing your order.

RockJock Johnny Joints

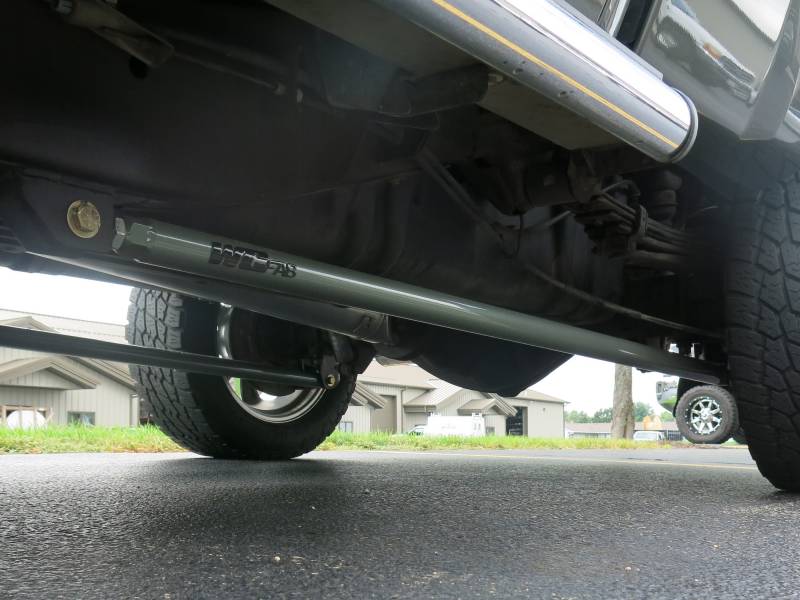

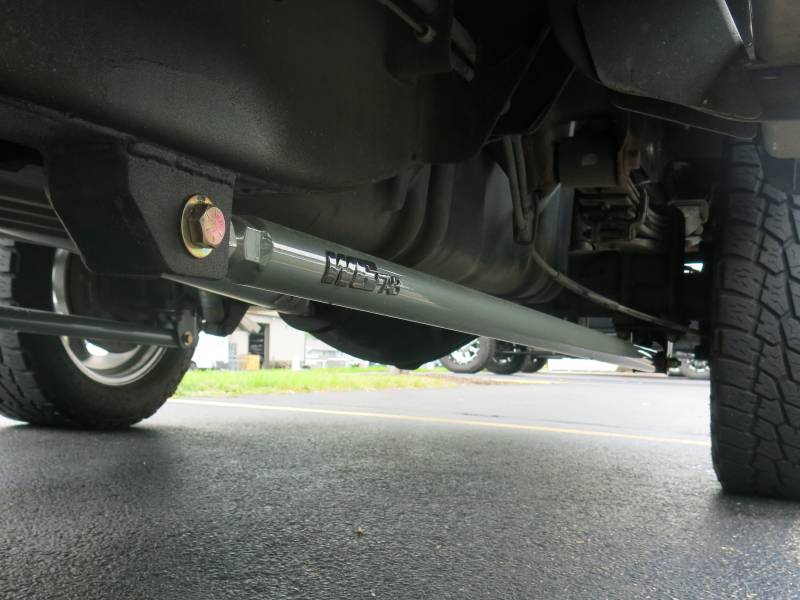

Built in house at WCFab carrying a LIFETIME WARRANTY against bending or breaking (to original purchaser). Traction bars are a necessary upgrade when increasing the horsepower on your diesel truck to prevent the axle from twisting which can lead to broken u-joints, driveshafts, and even twisted axle housings. Our traction bar brackets bolt on to the bottom of the axle tube via the axle u-bolts and weld to the frame on the front end. We use a high quality RockJock rebuild-able and grease-able “Johnny Joint” heim connection at the frame to allow for adjustment of torsion on the axle or if you raise/lower the rear of your truck. At the axle connection we use a heavy duty Poly Urethane Bushing for decreased noise and vibration which is common complaint if a solid heim is used on both ends.

Fitment: 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019 GM Silverado/Sierra 2500HD/3500HD 6.6L Duramax RCLB/CCSB/ECSB

Note: This kit includes 60" long bars for Regular Cab Long Bed, Extended Cab Short Bed and Crew Cab Short Bed Models
