BD Diesel 1045257 Super B Special SX-E S363 Turbo Kit | 1994-2002 Dodge RAM 2500/3500 5.9L Cummins
BD Diesel 1045257 Super B Special SX-E S363 Turbo Kit | 1994-2002 Dodge RAM 2500/3500 5.9L Cummins
- Price
- $2,524
Ships From Manufacturer in 1-2 Days
BD Diesel
BD Diesel 1045257 Super B Special SX-E S363 Turbo Kit | 1994-2002 Dodge RAM 2500/3500 5.9L Cummins
Click to open expanded view
Features:
Parts
- BD Single Turbo kits cover a range of turbos that are an easy complete bolt-on performance replacement for your OEM turbo, providing enough air for more power, response and reliability
- The SX-E turbo was designed for performance with a 360 thrust bearing and enhanced compressor wheel and housing
- Larger compressor blade surface but with a smaller inducer results in quicker spooling, more flow than similar sized wheels
- The high strength FMW Forged Milled Wheels are lighter and stronger and withstand higher wheel speeds
- BD exclusive feature of a heavy sprung waste-gated T3 turbine housing that mounts onto stock exhaust manifolds
- BD's HD Waste gate and bracket holds boost and prevents over speed damage
- Turnbuckle Boost Control allows for ease of adjustment for altitude and extreme tuning

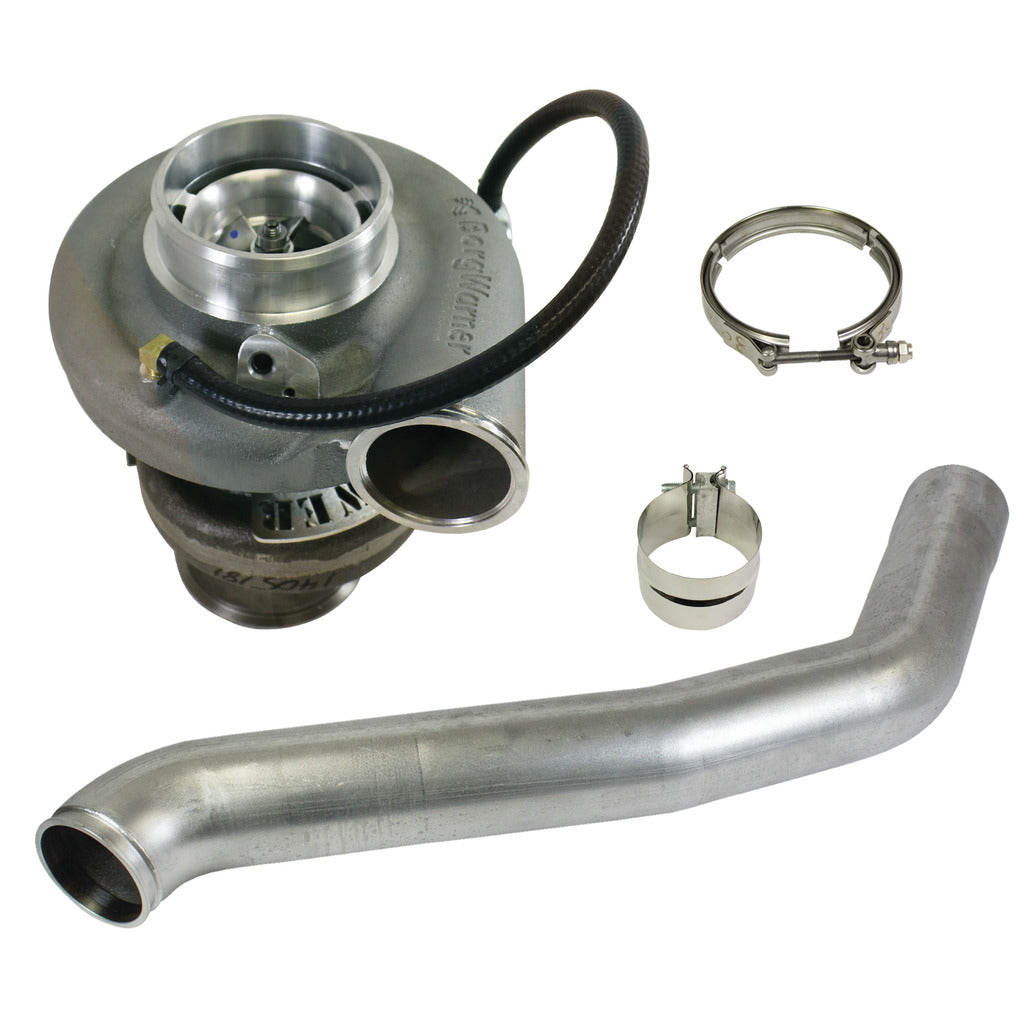

- Kit comes with downpipe, V-band clamp, band clamp
- Comp Wheel: 63mm 2.48in
- Turbine Wheel: 80mm 3.15in
- A/R Ratio: 0.80
- Flow: 79 Lb/min
- Approximate rated 550hp (depending on truck configuration)
BD's Dodge 5.9L Single Turbo kits have been the choice for a complete, easy bolt-on performance replacement for your OEM turbo, giving you more power, response and reliability. All kits come with everything you need to allow for an easy install. Now get these kits with Borg Warner SX-E turbo options and expect even more. The SX-E line was designed from the ground up for performance. Larger blade surface allows the SX-E models to spool quicker, flow more, and be more efficient with a smaller inducer size. A BD exclusive feature of the SX-E turbos is that they are waste-gated to mount on stock T3 manifolds. T3 style housing and manifolds create a higher velocity speed and better turbo response for these power ranges.
INSTALL TIME
- 4 Hours
WARRANTY
- 12-Months
- 12,000 Miles
NOTE
- Not for sale on licensed California vehicles
- Turbo mount exhaust brake cannot be installed with this kit - use remote mount exhaust brake
EMISSIONS
- This product has met EPA's reasonable basis requirements and is legal for sale and use within the jurisdiction of the federal EPA. (EMS:2)
| Property | Values |
|---|---|
| Year Ranges | 1994-2002 |
| Make | Dodge RAM |
| Model | |
| Series | 2500/3500 |
| Engine | 5.9L Cummins 12V/5.9L Cummins 24V |
