BD Diesel 1030606-5/8 Xtrude Auxiliary Transmission Oil Cooler with Fan Kit | 2001-2016 Silverado/Sierra 2500HD/3500HD 6.6L
Manufacturer: BD Diesel
SKU: BDD1030606-5/8
Price
$699.95
Total add-ons:
Out of stock - Call for Availability
Ships From Manufacturer in 1-2Â Days
Features:
22% more cooling over other designs
200 Micro Extruded passages
Large surface area to transfer heat for external air flow cooling
Turbulent oil flow design promotes a more complete cooling
Large 5/8-inch ports prevents inlet/outlet restriction
Furnace brazed rails have been tested to 300psi of pressure
Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan
33,930 BTU/HR and in excess of 30,000 GVW!

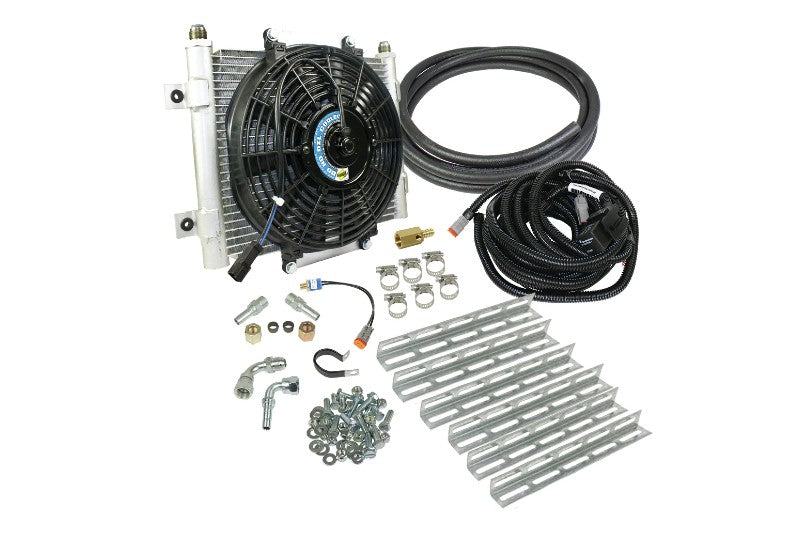

Kits complete with all fittings, clamps, hoses and hardware
Build-It-Yourself galvanized bracket kit for quick and easy installation - no wasting time fabricating brackets out of scrap metal
The pre-wired loomed harness with fuse and relay comes with plug-in connectors
Chevy Allison 1000 - 5/8-inch Cooler Lines
Coolers, providing 22% more cooling over other designs. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control. This combination gives BD's Xtruded Transmission Oil Cooler a rating of 33,930 BTU/HR and in excess of 30,000 GVW! Xtruded Transmission Oil Cooler packages come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation - no wasting time fabricating brackets out of scrap metal. The pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist elements and give factory-like install look.
INSTALL TIME
3 Hours 30 Minutes
WARRANTY
Parts
12-Months
24,000 Miles
NOTE
Intended to be used in conjunction with factory transmission coolers and not as stand-alone units
EMISSIONS
This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)
