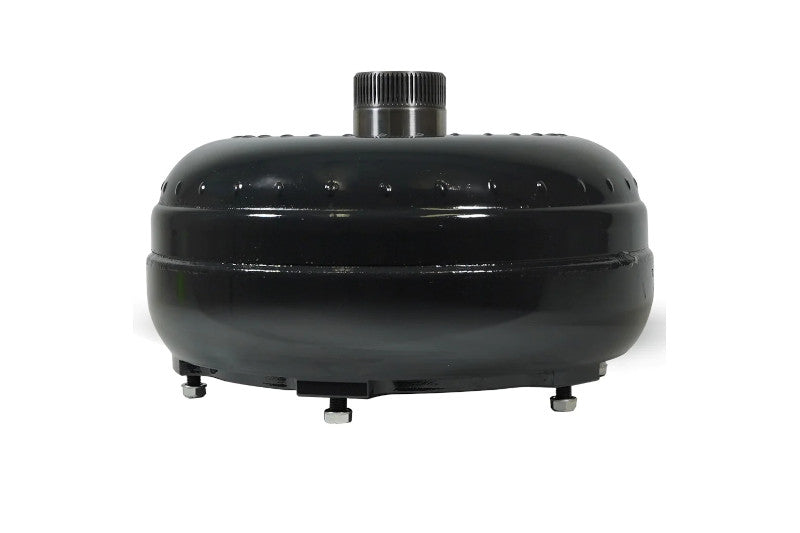

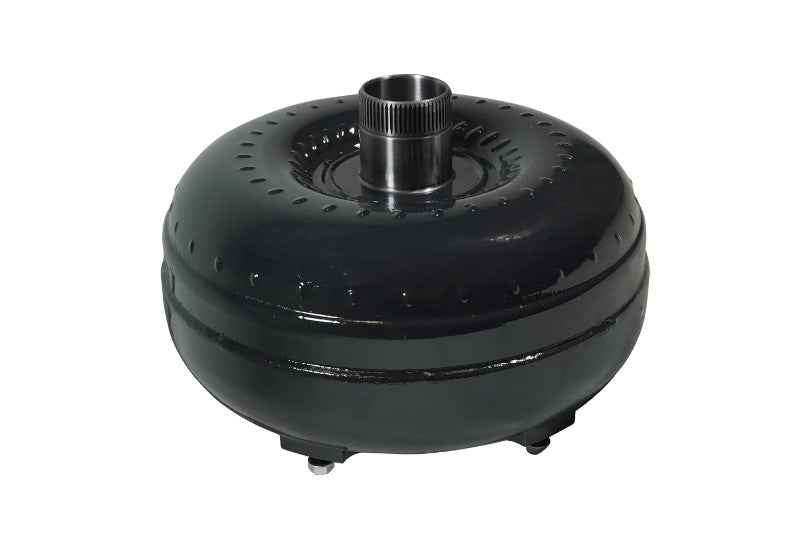

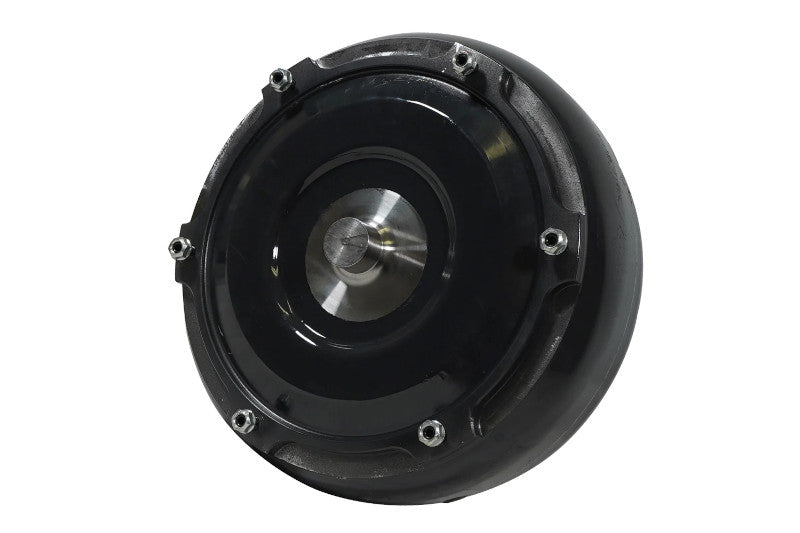

BD Diesel 1030238 ProForce 4D 6R140 Torque Converter | 2011-2019 Ford F250/F350 6.7L Powerstroke

Features:

• 23% increased piston area for additional clutch clamping force
• Billet bearing hub, piston and clutch retainer
• Captured clutch design with clutch return springs
• Increased clutch and steel plate count for improved heat dissipation
• Comes with hardware
• Factory furnace-brazed pump and turbine fins
• Four friction surfaces instead of the factory two surfaces
• Stamp forged 1-piece cover

Description

The BD 6R140 ProForce 4D Torque Converter is designed for hard-working and modified 6.7L PowerStroke Diesels. This torque converter is equipped with 4 clutch surfaces designed to handle heavy towing loads and is intended for up to 900+ horsepower. Our in-house CNC machined forged cover is designed to prevent warping and improper balance while facilitating the increased clutch count without sacrificing strength. In addition to a new cover, BD has designed a custom piston, bearing hub, release springs and backing plate to retain the OEM captured clutch design which delivers the same great drivability 6R140 owners are accustomed to.

Vehicle Fitment: 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019 Ford 6.7L Powerstroke

Important Note: Will not fit early 2011 trucks with 8-bolt flex plate - will have to update to 6 bolt flex plate.

Warranty: Backed by a 36-Month Warranty

Year Ranges	Make	Model	Series	Engine
2011-2019	Ford	Super Duty	F250/F350	6.7L Powerstroke

Property	Values
Year Ranges	2011-2019
Make	Ford
Model	Super Duty
Series	F250/F350
Engine	6.7L Powerstroke
