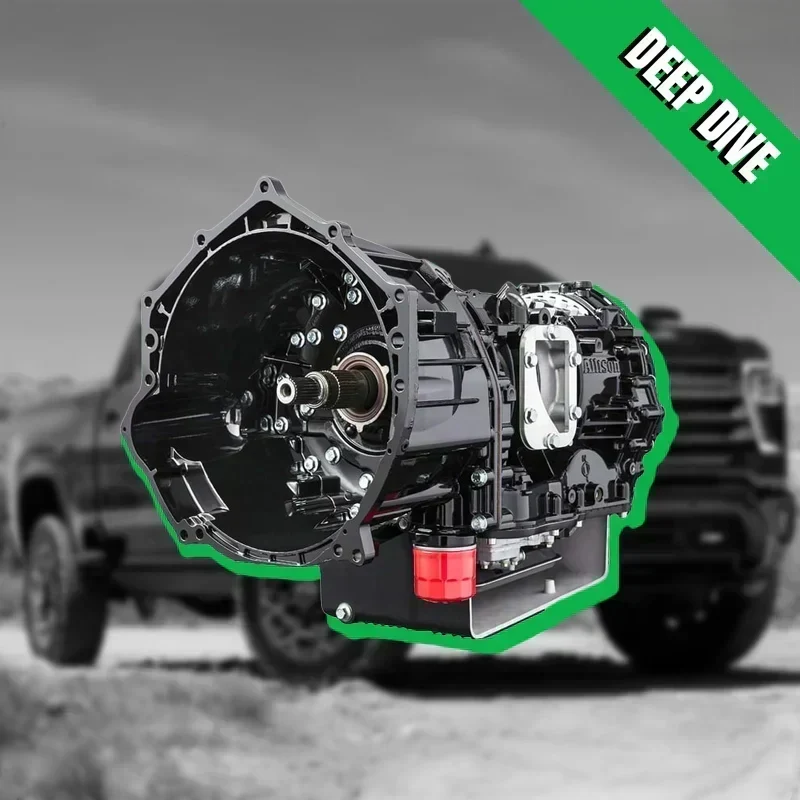

Allison 10L1000 Transmission: A Technical Deep Dive and Overview

Disclaimer! The truth is, the opinion ANYONE has on any part, brand, truck, transmission, or even the weather has a LOT to do with their personal experiences and the expectations and experiences they have. Plenty of Ford folks love the 5.4 Triton motor, while (seemingly) every mechanic who’s ever turned a wrench on one hates it. Despite the issues GM’s “new” transmission seems to have, and the press associated with it, the simple fact is this: These units ARE handling factory horsepower and torque numbers undreamed of a generation ago, and towing capacities that once lay only in the realm of tractor-trailers. But, the other side of the coin is this: for the cost of these trucks, the expectations are extremely high, and ANY failures demand answers.

So, with that said, we’ve spent a lot of time going down a lot of rabbit holes, speaking with service managers at the dealerships, some transmission experts that have personally dug into these units, and more than a few owners to try to get a clearer picture of what’s right and wrong with the Allison 10L1000 transmissions.

First of all, this isn’t a short little article. In fact, it might be the longest one we’ve ever written for our blog, but we’ve tried to get as much information – and FACTS – about the 10L1000 transmissions to give you a fair snapshot of the good, the bad, and the ugly. Yes, the aftermarket has already come on strong to support the 10L1000, and Alligator Performance has got a full selection of the upgrades we now know you’ll need in the future.

To start with, if you’ve been under a rock for the last few years, the Allison 10L1000 is a 10-speed automatic transmission developed for GM's heavy-duty trucks, specifically those equipped with the 6.6L Duramax L5P diesel engine. Introduced in 2020, this transmission was co-developed by General Motors and Allison Transmission (And Ford – more on that later…), but unlike traditional Allison-built units, it is manufactured by GM at their Toledo, Ohio plant. Despite this, GM uses the Allison branding due to their partnership and shared expertise in transmission development.

As with any new transmission, there have been issues, and the aftermarket (and GM) have been refining the solutions now for half a decade.

Key Specifications

  • Model: Allison 10L1000
  • Application: 2020+ GM HD trucks (Chevrolet Silverado 2500HD/3500HD, GMC Sierra 2500HD/3500HD)
  • Torque Capacity: 1,000 lb-ft (factory rating)
  • Horsepower Capacity: Up to 470 hp (based on L5P Duramax engine output)
  • Gear Ratios: 10 forward gears for optimized performance, efficiency, and towing capability
  • Shift Control: Electronically controlled, with adaptive shift logic and a tow/haul mode

Development & Purpose

The 10L1000 was designed to replace the aging 6-speed Allison 1000 transmission, offering:

  • More refined and efficient gear spacing
  • Improved towing performance with lower 1st gear ratios
  • Better fuel economy with overdrive in higher gears
  • Smoother shifts due to the electronic shift-by-wire system

This transmission was engineered to handle the increased power and torque demands of modern diesel engines, making it a crucial component in the 2020+ Duramax-powered GM HD trucks. It competes directly with Ford’s 10R140 transmission, found in the Ford Super Duty line of trucks, and the other dirty little secret about these new transmissions is they are a collaborative effort between GM and Ford.

Who Actually Builds the Allison 10L1000?

Plenty has already been said about this, and it’s true: Allison does not build the 10L1000 transmission in-house. Instead, General Motors manufactures the 10L1000 at their Toledo Transmission Operations plant in Toledo, Ohio.

Of course, this has caused all kind of controversy, since many people assume that because the transmission is called "Allison 10L1000," it's built by Allison Transmission. However, Allison only provided input on the design but does not manufacture or assemble the unit. General Motors owns the design and production process while Allison was only involved in design approval and validation testing. On the other hand, the 10L1000 uses some Allison-inspired features, but it is not an "Allison-built" product like the Allison 1000 (5-speed/6-speed) units found in previous Duramax-powered GM HD trucks (2001–2019).

The point is, GM licenses the Allison name to market the transmission, leveraging the strong reputation of Allison-branded transmissions in the heavy-duty industry. The branding strategy was aimed at boosting consumer confidence, especially among those familiar with the durability and reliability of true Allison-built transmissions. If that bothers you, well, it’s been a part of automotive manufacturing for nearly a century, which is why GM’s Saginaw steering boxes found their way into Ford’s for decades.

How Does the GM 10L1000 Differ from the Older Allison 1000 5-Speed & 6-Speed Units

The 10L1000 transmission found in 2020+ GM HD trucks represents a major departure from the older Allison 1000-series transmissions, which were true Allison-built units used from 2001 to 2019. While both are designed for heavy-duty diesel applications, the 10L1000 introduces several advancements in gear count, control systems, efficiency, and performance.

Key Differences Between the 10L1000 and the 5/6‑Speed Allison 1000

Feature Allison 1000 (5‑speed/6‑speed, 2001‑2019) GM 10L1000 (2020+)
Manufacturer Allison Transmission (Indianapolis, IN) General Motors (Toledo, OH)
Gear Count 5‑speed (2001‑2005), 6‑speed (2006‑2019) 10‑speed (2020‑present)
Torque Capacity ≈ 650‑750 lb‑ft (stock) 1,000 lb‑ft + (stock)
Control System Hydraulic with some electronic control Fully electronic shift‑by‑wire
Shift Strategy Fixed shift points; adaptive learning in later models Multi‑mode adaptive learning; tow/haul mode; downhill grade braking
Efficiency Less efficient; higher RPMs at highway speeds Improved fuel economy; better gear spacing
Cooling System External transmission cooler Enhanced internal cooling circuits
Towing Capability Strong but limited by fewer gears More gears = better powerband utilization
Factory Applications Chevrolet Silverado & GMC Sierra 2500HD/3500HD (2001‑2019) Chevrolet Silverado & GMC Sierra 2500HD/3500HD (2020+)



Breakdown of the Major Differences

1. Gear Count: 10 vs. 5/6

  • The biggest mechanical difference is the jump from 5 or 6 gears to 10 forward gears.
  • More gears mean tighter spacing between shifts, keeping the Duramax 6.6L engine in its optimal powerband for towing, acceleration, and efficiency.
  • The first gear is lower for better launch power under heavy loads, while multiple overdrive gears improve highway cruising efficiency.

2. Manufacturer: GM vs. Allison

  • The Allison 1000 (5-speed and 6-speed versions) was fully engineered, built, and assembled by Allison Transmission in Indianapolis, IN.
  • The 10L1000 is engineered and built by GM at their Toledo, Ohio plant, but Allison "approved" its design, allowing GM to use the Allison name for branding.

3. Torque Handling

  • The 6-speed Allison 1000 topped out at around 750 lb-ft before requiring upgrades for serious performance applications.
  • The 10L1000 is factory-rated for 1,000 lb-ft of torque and can handle more power before requiring major modifications.

4. Control System & Shift Strategy

  • The Allison 1000 used a mix of hydraulic and electronic controls with basic adaptive shift learning.
  • The 10L1000 is fully electronic and shift-by-wire, with advanced learning algorithms that adjust based on load, driving conditions, and throttle input.
  • Tow/Haul Mode and downhill grade braking are more refined in the 10L1000, making it smarter when pulling heavy loads on steep grades.

5. Improved Fuel Economy & Efficiency

  • The 6-speed Allison 1000 often had the Duramax turning high RPMs at highway speeds, leading to reduced fuel efficiency.
  • With three overdrive gears, the 10L1000 allows the Duramax engine to cruise at lower RPMs, reducing fuel consumption and engine wear.

6. Cooling & Durability

  • The 10L1000 has an improved internal cooling system, reducing overheating risks under heavy loads.
  • GM made various updates to prevent fluid leaks, a known issue with some Allison 1000 units.



Which One is Better?

Use Case Allison 1000 (5/6‑Speed) GM 10L1000 (10‑Speed)
Stock Reliability Proven, durable design More gears, improved cooling
Towing Performance Strong, but fewer gears limit efficiency Better gear spacing, smoother power delivery
Fuel Economy Good, but high RPMs at highway speeds Lower RPMs = better efficiency
Aftermarket Support Wide range of upgrades & rebuilds Growing, but fewer upgrade options yet
Tuned/Modified Applications Built units can handle high torque Good, but concerns about longevity under tuning



GM 10L1000 vs. Ford 10R140: The Battle of 10-Speed Heavy-Duty Transmissions

The GM 10L1000 and Ford 10R140 are both 10-speed heavy-duty automatic transmissions developed as part of the GM-Ford 10-speed collaboration. These transmissions were introduced in 2020+ heavy-duty diesel trucks, but despite their shared development roots, each manufacturer tailored its version to match their respective Duramax 6.6L and Power Stroke 6.7L diesel engines.

Below, we’ll break down the key differences, advantages, and potential drawbacks of each unit.



Quick Specs Comparison

Feature GM 10L1000 (2020+) Ford 10R140 (2020+)
Manufacturer General Motors (GM Toledo Transmission Plant) Ford (Sharonville Transmission Plant)
Gear Count 10 forward gears, 1 reverse 10 forward gears, 1 reverse
Torque Capacity 1,000 lb‑ft (stock) 1,050 lb‑ft (stock)
Horsepower Capacity 470 hp (L5P Duramax) 500 hp + (6.7L Power Stroke)
First Gear Ratio 4.54 : 1 4.61 : 1
Final Overdrive Ratio 0.63 : 1 0.63 : 1
Shift Control Electronically controlled, shift‑by‑wire Electronically controlled, shift‑by‑wire
Tow/Haul Features Grade braking, Tow/Haul mode, adaptive learning Grade braking, Tow/Haul mode, adaptive learning
Fluid Capacity Approx. 13.4 quarts Approx. 17 quarts
Cooling System Internal transmission cooling with external heat exchanger Internal cooling and enhanced thermal management
Durability Issues? Leaks, valve‑body quirks CDF drum failures, pump issues



Below, we’ll break down the key differences, advantages, and potential drawbacks of each unit.

1. Manufacturing & Design

  • The GM 10L1000 is designed and built by GM, though it carries Allison branding under license.
  • The Ford 10R140 is built by Ford in Sharonville, Ohio and is not associated with Allison.

2. Torque & Power Handling

  • The 10R140 is slightly more robust, handling 1,050 lb-ft of torque stock (from the 6.7L Power Stroke) vs. 1,000 lb-ft in the GM 10L1000.
  • The 10L1000 is engineered to be more fuel-efficient but isn’t quite as overbuilt as the 10R140.

3. Gear Ratios & Performance

Both transmissions have similar gear spacing, but Ford’s 10R140 has a slightly lower 1st gear ratio (4.61:1 vs. 4.54:1), giving it a small advantage in initial launch power—useful for heavy towing.

However, both transmissions share a final 0.63:1 overdrive ratio, meaning highway cruising efficiency is about the same.

4. Tow/Haul Performance

  • Both units feature adaptive shift learning that adjusts shift patterns based on load, throttle input, and terrain.
  • The 10R140 has a slightly more aggressive grade braking function, which engages earlier in downhill conditions.
  • Ford’s Power Stroke trucks tend to downshift earlier when descending grades, which can provide better engine braking.

5. Fluid & Cooling System

  • The 10R140 has a larger fluid capacity (17 quarts vs. 13.4 quarts in the 10L1000).
  • More fluid typically means better thermal management, which can reduce overheating risks under heavy loads.
  • The 10L1000 has an improved internal cooling system, but some owners report fluid leaks as a weak point.

Reliability & Common Issues

GM 10L1000 Common Problems

  • Unexplained transmission fluid leaks (front seal and torque converter areas).
  • Valve body issues leading to erratic shifting.
  • E-clutch premature wear, particularly in tuned or heavy tow applications.

Ford 10R140 Common Problems

  • CDF (C, D, F clutch drum) failures, where the internal steel sleeve moves, causing pressure loss and shifting issues.
  • Torque converter overheating in high-load situations.
  • Pump wear concerns over time, especially in fleet trucks.



Which Transmission is Better?

Use Case GM 10L1000 Ford 10R140
Stock Reliability Fewer widespread failures CDF drum is a weak point
Towing Heavy Loads Very capable, smooth shifts Slightly better grade braking
Fuel Economy Good, thanks to smart shift logic More fluid means better cooling
Performance Mods/Tuning Some concerns about clutch longevity Better for extreme torque tuning
Factory Torque Capacity 1,000 lb‑ft 1,050 lb‑ft



Final Verdict

  • For Stock Applications: Both transmissions are strong choices, but Ford’s 10R140 has slightly better torque handling and grade braking.
  • For Towing: Ford’s transmission engages engine braking earlier, making it better suited for heavy loads on steep grades.
  • For Tuned/Performance Applications: The 10R140 seems to hold up better under tuned conditions, whereas the 10L1000 may require aftermarket clutch upgrades.
  • For Longevity & Reliability: Neither transmission is bulletproof, but GM’s 10L1000 seems to have fewer catastrophic failures than Ford’s 10R140 (which has seen some serious CDF drum failures).

Final Thoughts:

Both transmissions represent major advancements over their older 6-speed counterparts, with improved efficiency, gear spacing, and towing performance. However:

  • Ford’s 10R140 handles torque better stock, but has more reliability concerns.
  • GM’s 10L1000 is smoother and slightly more efficient, but has minor leak and clutch wear issues.

So, What Are the Known Issues with the GM 10L1000 Transmission?

Here is a breakdown of the most commonly reported issues with the 10L1000 transmission.

1. Transmission Fluid Leaks (Torque Converter & Front Seal)

Issue: One of the most widely reported concerns with the 10L1000 is unexplained transmission fluid leaks, particularly around the torque converter area and front seal. Some owners have noticed fluid pooling underneath their trucks or low transmission fluid levels without clear cause.

Possible Causes:

  • Torque converter housing misalignment could be causing excessive pressure on the seals, leading to leaks.
  • Thermal expansion and contraction may be weakening the front seal over time, leading to slow but persistent leaks.
  • Design flaw in the transmission case or gasket material, allowing small seepage points.

Fixes & Workarounds:

  • GM has issued updated front seals, but it is unclear if these fully resolve the issue.
  • Some owners have replaced the stock torque converter with aftermarket units, which seem to reduce the likelihood of leaks.

2. Valve Body Issues (Delayed Engagement, Harsh Shifts)

Issue: Some 10L1000 owners have reported issues with delayed gear engagement, erratic shifting, or hesitation when shifting into Drive or Reverse. These issues often worsen in cold weather or after prolonged use under load.

Possible Causes:

  • Faulty or inconsistent solenoid operation within the valve body.
  • Electronic shift mapping inconsistencies, where the transmission struggles to properly time upshifts and downshifts.
  • Fluid pressure inconsistencies, leading to delayed engagement or hesitation.

Fixes & Workarounds:

  • Some owners have reported success with a valve body upgrade, such as those from SunCoast Diesel or RevMax, which offer improved solenoid operation and flow control.
  • A TCM (Transmission Control Module) reset can sometimes help recalibrate shifting behavior.
  • GM dealership software updates have been rolled out, but mixed results have been reported.

3. Premature E-Clutch Wear (Slipping Under Load)

Issue: The E-clutch assembly, responsible for handling higher-gear shifts, has shown signs of premature wear, especially in trucks that tow heavy loads frequently or have been tuned for more power. Some owners experience slipping, shuddering, or inconsistent power delivery.

Possible Causes:

  • The stock clutch material may wear out faster under high-stress towing conditions.
  • The transmission cooling system may not be keeping temperatures in check, leading to accelerated clutch wear.
  • Higher-than-expected internal fluid pressures may be stressing the clutch packs.

Fixes & Workarounds:

  • Upgrading to aftermarket clutch packs (such as SunCoast or BD Diesel Performance) helps extend clutch life and improve holding capacity.
  • Installing an external transmission cooler can reduce operating temperatures, helping to slow wear on the clutch packs.
  • Regular transmission fluid changes with high-quality Dexron ULV fluid can extend clutch life.

4. Transmission Tuning & Limp Mode (Torque Management Sensitivity)

Issue: The 10L1000 transmission is highly sensitive to tuning and performance upgrades, with some tuned trucks entering limp mode unexpectedly or shutting down under heavy load.

Possible Causes:

  • The factory TCM aggressively monitors torque output, and if it detects an imbalance, it can cut power and limit shifting.
  • Inadequate tuning adjustments can cause erratic shift behavior, forcing the transmission into self-protection mode.
  • The stock transmission cooler may not handle increased heat loads under higher power levels.

Fixes & Workarounds:

  • Custom transmission tuning from companies like DuramaxTuner, PPEI, or Banks Power helps refine shift points and torque limits.
  • Stronger clutch packs and aftermarket valve bodies can help prevent limp mode by improving fluid pressure control.
  • Installing a larger transmission cooler reduces fluid temperature spikes, helping the transmission handle higher power output.

5. Potential Longevity Concerns in High-Load Applications

Issue: While the 10L1000 is designed for heavy-duty use, there are concerns about long-term durability, particularly for high-mileage trucks that tow frequently.

Potential Concerns:

  • Some fleet operators have reported early wear signs on high-mileage trucks.
  • The 10-speed design, while efficient, has more moving parts than the previous 6-speed, which could lead to more wear points over time.
  • GM’s decision to build the transmission in-house (rather than sourcing from Allison Transmission) raises questions about long-term reliability compared to the older Allison-built 1000-series.

Fixes & Workarounds:

  • Regular transmission maintenance (fluid and filter changes) helps extend longevity.
  • Aftermarket upgrades, such as reinforced clutch packs and billet torque converters, improve durability for high-load applications.
  • Monitoring transmission fluid temperature and pressure can help catch early signs of wear.

What The Final Verdict? Is the 10L1000 a Good Transmission?

The 10L1000 transmission is a significant upgrade over the older Allison 6-speed, offering more gears, smoother shifting, better efficiency, and improved towing capacity. However, early ownership experiences have revealed a few key weak points.

While many owners report smooth operation and improved drivability, others have faced fluid leaks, valve body quirks, and premature clutch wear, particularly under heavy use or performance tuning. GM has addressed some of these concerns with software updates and minor hardware revisions, but long-term durability remains a question, especially compared to the older Allison-built units.

For stock applications, the 10L1000 performs well, but those who tow frequently or plan performance modifications should consider aftermarket upgrades like reinforced clutch packs, larger transmission coolers, and valve body enhancements to ensure maximum reliability. The transmission's sensitivity to tuning can also be a drawback for those looking to push power limits, as torque management settings may trigger limp mode if not properly adjusted.

Ultimately, the 10L1000 offers a strong foundation for GM's modern HD trucks, but like any newer transmission, it has areas that could be improved. Those looking for maximum longevity and reliability should stay on top of maintenance and consider key aftermarket upgrades to mitigate potential issues.

What we keep coming back to – and keep having to remind ourselves about – is these transmissions are handling a BOATLOAD of power and torque, and are doing so using modern designs. We’re not talking about a heavy, cast-iron cased Road Ranger or Clark, we’re talking about an electronically controlled, fully automatic transmission. Overall, it’s a robust design and will undoubtedly continue to be refined and improved (Just like ANY transmission, from the PowerGlide to the 700R4 to the 4L80E).

In the meantime, Alligator Performance continues to dig into the known issues and to bring the solutions for them to you.
