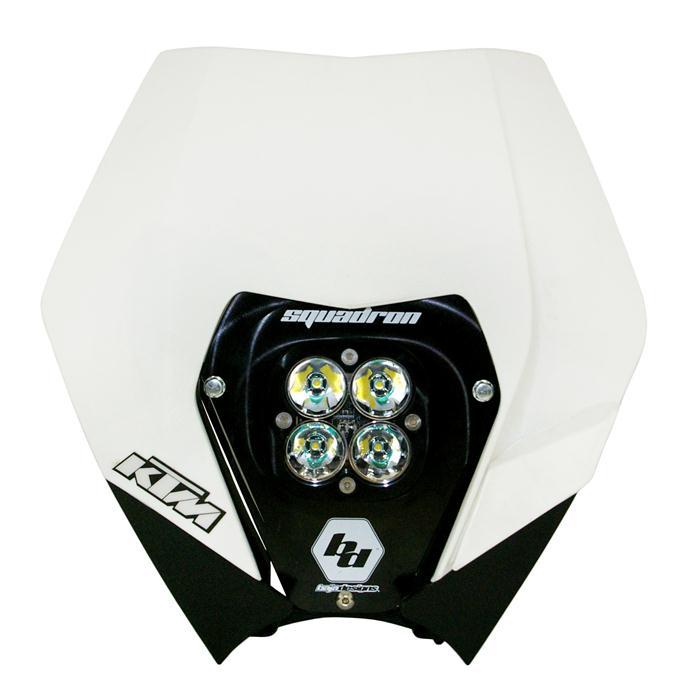

Baja Designs 497061 Complete LED Kit W/ Head Shell White Squadron Pro | 08-13 KTM

Specifically designed for those riders who are looking for more than just your average headlight. The Squadron Pro, LED KTM 2008-ON Kit W/ Head Shell is in a league of its own, producing 4,900 lumens and 40 watts giving you the perfect mix of power and performance.

The Squadron Pro, LED KTM 2008-ON Kit W/ Head Shell has been meticulously designed by our engineers to give our riders an extremely light weight (12 ounces) race light, while presenting a unique style and appearance that you will only find from Baja Designs. The Squadron Pro, LED KTM 2008-ON Kit W/ Head Shell is plug and play making for an easy install. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.
Note: For the EXCs that were made from 2007-2011 that are carbureted, our lights will require the purchase of 61-1040 (DC conversion kit).

Electric start bikes that require a stator modification or rewind will have to the purchase a switch and wiring harness kit.

For Electric-Start Bikes: Some electric-start bikes require the stator to be modified or rewound as well as the addition of a new rectifier/regulator to run LED lights. If your bike requires a new rectifier/regulator please order part (12-2004) (please provide year/make/model of bike). Detailed stator modification instructions and hardware is included for all bikes that require a stator modification to run LED lights. If your bike requires the stator to be rewound, please call Baja Designs for an order confirmation number to have this service performed.
Baja Designs Features:
Light Pattern: Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both wide cornering (10 degree) and Spot (9 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

• Satisfactions Guarantee 30 Day Money Back


• Guarantee


• Limited Lifetime Warranty Complete Purchase Protection


• uService Replaceable Lenses And Optics


• ClearView All The Light, Right Where You Need It.


• MoistureBlock Waterproof, Rain Proof, Submersible


• CopperDrive Only LED Driven At 100 percent


• 5000K Daylight Less Driver Fatigue, Natural Color

Specifications:

• Lumens: 4,900 Utilizing 4 Cree LEDs


• Wattage/Amps:40W / 3.33A


• Dimensions: 3.07 x 2.77 x 3.07 inch


• Weight: 12 ounces


• LED Life Expectancy: 49,930 Hours


• Front Lens: Hard Coated Polycarbonate


• Housing: Hard Anodized and Powder Coated Cast Aluminum


• Bezel: Billet Machined Aluminum


• Hardware and Bracket Material: Stainless Steel


• Exceeds MIL-STD810G (Mil-Spec Testing)


• Built-In Overvoltage Protection


• IP69K (Waterproof, Submersible to 9ft)


• IK10 Compliant (Mechanical Impact Testing)

Includes:
Squadron Pro, LED KTM 2008-ON Kit W/ Head Shell
